SECONDARY AIR SYSTEM SAS

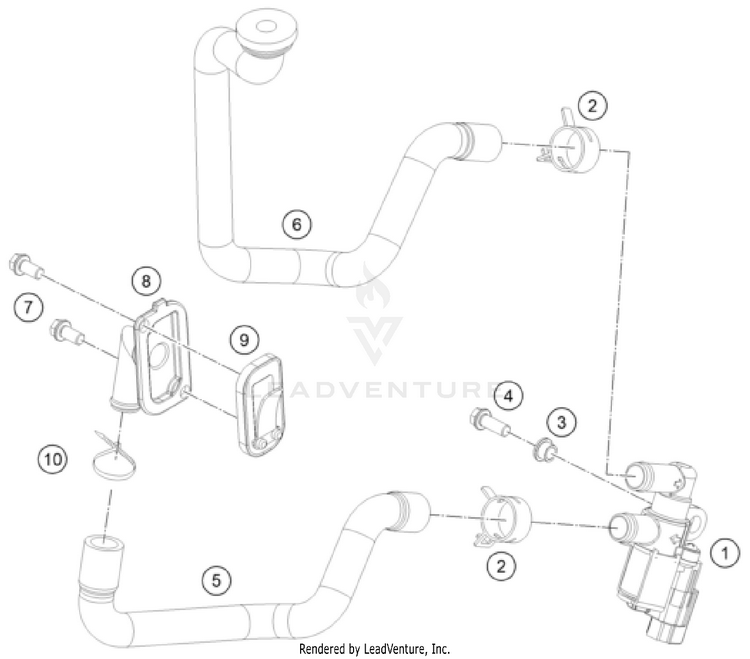

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
175005026000SLS-VALVE 07$87.66$74.51Usually ships in 7-10 business days
200050325706VARIABLE ONE-EAR CLAMP 32,5MM$4.99$4.2410+ In-Stock
375005033000COLLAR BUSH SAS-VALVE$4.99$4.49Usually ships in 7-10 business days
40025060166HH collar screw M6x16 TX30$2.99$2.5410+ In-Stock
527005027100SLS-hose to vent cover$12.20$10.37Usually ships in 7-10 business days
627005026000SAS hose to airbox$42.67$36.27Usually ships in 7-10 business days
70025060126SHex collar screw M6x12 ISA30 self-lockin-$2.0410+ In-Stock
861205032000SAS-FLANGE$22.32$18.97Usually ships in 7-10 business days
960005026000reed valve$25.29$21.50Usually ships in 7-10 business days
1044011076200CABLE TIE 200/3,6MM BLACK$1.99$1.8810+ In-Stock
