2024 Husqvarna 701 ENDURO Timing Drive OEM Parts Diagram

Submodel 701 FE/FS US ENGINE - 2024

Shop Aftermarket Parts

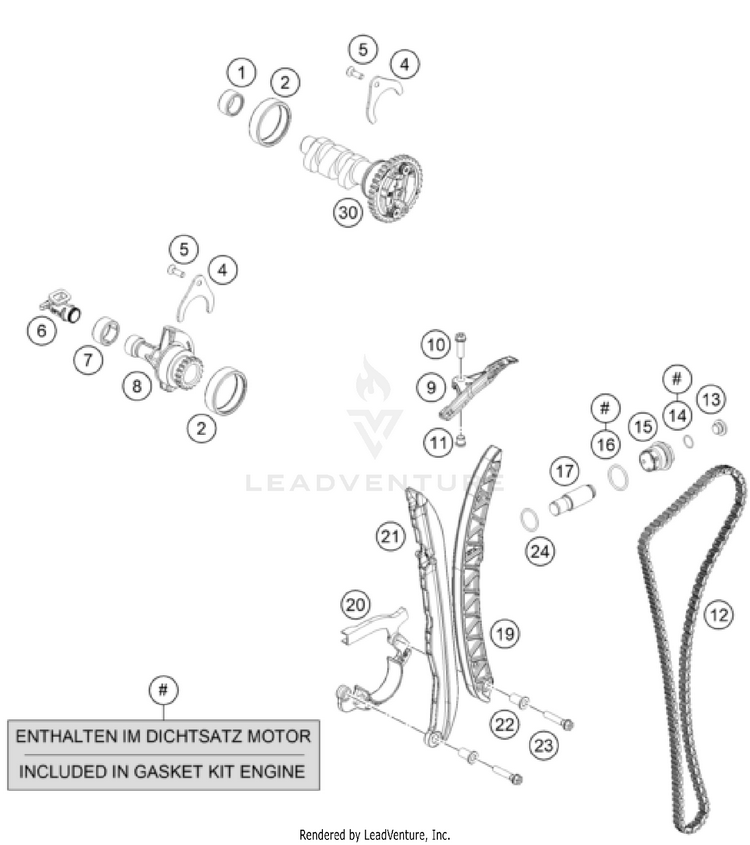

TIMING DRIVE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10618182412NEEDLE BEAR.HK1812 18/24/12 05$9.56$8.1310+ In-Stock
20618404712NEEDLE SLEEVE HK4012B40X47X12$12.97$11.0210+ In-Stock
476636010050LOCKING PLATE$17.81$15.14Usually ships in 7-10 business days
50019050163SINT. TORX FLAT HEAD M5X16 8.8$2.99$2.5410+ In-Stock
676636081000BREATHER SYSTEM CONNECTOR$7.80$7.02Usually ships in 7-10 business days
750203097000NEEDLE BUSH HK 2012$18.25$15.5110+ In-Stock
876630158000Balancer shaft cylinder head$87.22$74.14Usually ships in 7-10 business days
976636005000CHAIN GUIDE$8.13$7.32Usually ships in 7-10 business days
100025060206SHH collar screw M6x20 TX30$2.99$2.5410+ In-Stock
1160040027050SUPPORTING SLEEVE 03$7.47$6.3510+ In-Stock
1276636013000TIMING CHAIN$60.82$51.70Usually ships in 7-10 business days
1377236080000

(replaces part #
77236080100)

SCREW PLUG$7.80$6.6310+ In-Stock
140770010010o-ring 10.00x1.00 NBR70$2.99$2.5410+ In-Stock
1561236008200chain tension adjuster plug cpl.$35.74$30.383 In-Stock
160770220020o-ring 22.00x2.00 NBR70$2.99$2.5410+ In-Stock
1777036003200Chain tension adjuster, hydraulic$62.25$52.9110+ In-Stock
1976636102000Tensioner rail$25.40$21.59Usually ships in 7-10 business days
2076636018000CHAIN GUIDE$9.89$8.90Usually ships in 7-10 business days
2176636001000GUIDING RAIL$13.30$11.30Usually ships in 7-10 business days
2275036018050SUPPORTING SLEEVE 07$6.15$5.54Usually ships in 7-10 business days
230025060306SHH collar screw M6x30 TX30$3.99$3.3910+ In-Stock
240770180020o-ring 18.00x2.00 NBR70$2.99$2.5410+ In-Stock
3076636010444Camshaft cmpl.$636.12$540.70Usually ships in 7-10 business days
