2007 Kawasaki MULE 3010 TRANS 4X4 Diesel Carrier(S) OEM Parts Diagram

Submodel KAF950C7F Mule 3010 Trans4x4 Diesel

Shop Aftermarket Parts

CARRIER(S)

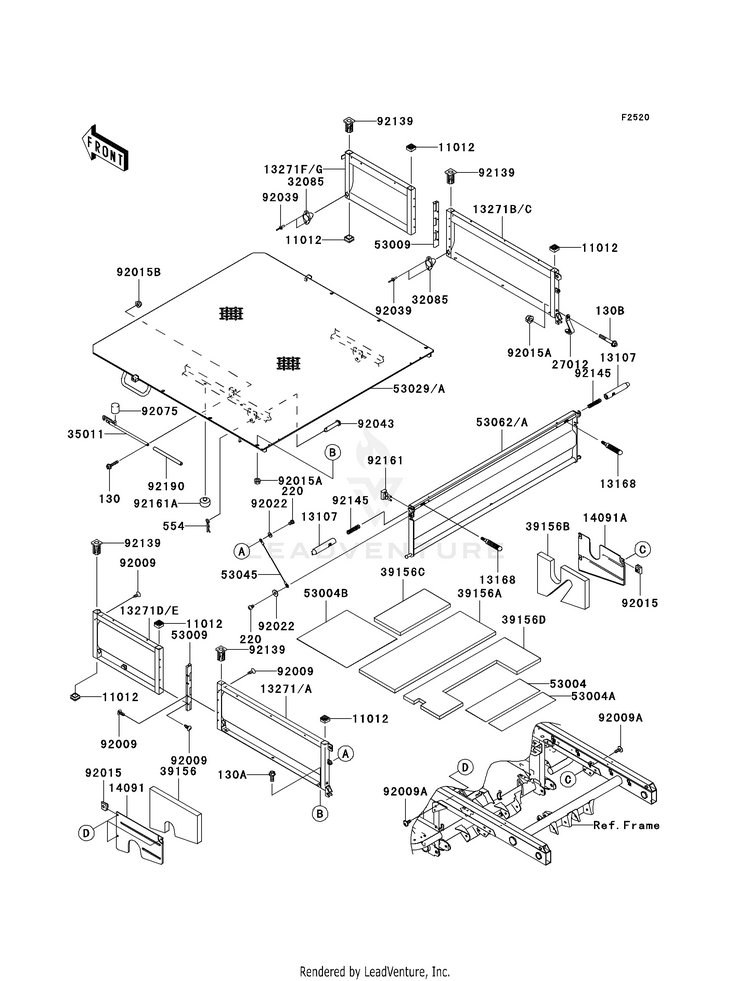

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1101211012-1784CAP
10+ In-Stock
130130BA0630

(replaces part #
130H0630)

BOLT-FLANGED,6X30
10+ In-Stock
130A130BB0820

(replaces part #
130J0820)

BOLT-FLANGED,8X20
10+ In-Stock
130B130BB0850

(replaces part #
130J0850)

BOLT-FLANGED,8X50
Usually ships in 7-10 business days
1310713107-0001SHAFT
Usually ships in 7-10 business days
1316813168-7501LEVER
2 In-Stock
1327113271-7532-398PLATE,SIDE,RR,LH,W.GR
Usually ships in 7-10 business days
13271A13271-7532-467PLATE,SIDE,RR,LH,A.RE
Usually ships in 7-10 business days
13271B13271-7534-398PLATE,SIDE,RR,RH,W.GR
Usually ships in 7-10 business days
13271C13271-7534-467PLATE,SIDE,RR,RH,A.RE
Usually ships in 7-10 business days
13271D13271-7535-398PLATE,SIDE,FR,LH,W.GR
Usually ships in 7-10 business days
13271E13271-7535-467PLATE,SIDE,FR,LH,A.RE
Usually ships in 7-10 business days
13271F13271-7537-398PLATE,SIDE,FR,RH,W.GR
Usually ships in 7-10 business days
13271G13271-7537-467PLATE,SIDE,FR,RH,A.RE
Usually ships in 7-10 business days
1409114091-7546COVER,ENCLOSURE,LH
Usually ships in 7-10 business days
14091A14091-7562

(replaces part #
14091-7555)

COVER,ENCLOSURE,RH
Usually ships in 7-10 business days
220220AB0610

(replaces part #
220F0610)

SCREW-PAN-CROS,6X10
10+ In-Stock
2701227012-0022HOOK,TAIL GATE
8 In-Stock
3208532085-7501STOPPER
Usually ships in 7-10 business days
3501135011-1648STAY,CARRIER STOPPER
Usually ships in 7-10 business days
3915639156-0007PAD,ENCLOSURE COVER,L
Usually ships in 7-10 business days
39156A39156-0010PAD,CARRIER,MIDDLE
Usually ships in 7-10 business days
39156B39156-7503PAD,ENCLOSURE COVER,R
Usually ships in 7-10 business days
39156C39156-7504PAD,CARRIER,FR
Usually ships in 7-10 business days
39156D39156-7505PAD,CARRIER,RR
Usually ships in 7-10 business days
5300453004-0036

(replaces part #
53004-0004)

MAT,CARRIER,MIDDLE
Usually ships in 7-10 business days
53004A53004-0037

(replaces part #
53004-0005)

MAT,CARRIER,RR
Usually ships in 7-10 business days
53004B53004-0038

(replaces part #
53004-7502)

MAT,CARRIER,FR
Usually ships in 7-10 business days
5300953009-7501HINGE,CARRIER
Usually ships in 7-10 business days
5302953029-7512-398CARRIER,W.GREEN
Usually ships in 7-10 business days
53029A53029-7512-467CARRIER,A.RED
Usually ships in 7-10 business days
5304553045-0031

(replaces part #
53045-0004)

HOOK-ASSY,TAIL GATE
6 In-Stock
5306253062-7503-398GATE-TAIL,W.GREEN
Usually ships in 7-10 business days
53062A53062-7503-467GATE-TAIL,A.RED
Usually ships in 7-10 business days
554554DA1200

(replaces part #
554A1200)

PIN-SNAP,12MM
2 In-Stock
9200992009-1166SCREW,TAPPING,6X16
10+ In-Stock
92009A92009-1694

(replaces part #
92009-1621)

SCREW,6X16
10+ In-Stock
9201592015-1094NUT,6MM
6 In-Stock
92015A92210-0004

(replaces part #
92015-1408)

NUT,FLANGED,8MM
1 In-Stock
92015B92015-1675NUT,LOCK,FLANGED,6MM
10+ In-Stock
9202292022-1545WASHER,7X18X1.2
10+ In-Stock
9203992039-1150RIVET
Usually ships in 7-10 business days
9204392043-1428PIN,12X65
Usually ships in 7-10 business days
9207592075-1817DAMPER
9213992139-7501BUSHING,REAR SCREEN
Usually ships in 7-10 business days
9214592145-1215SPRING,TENSIONER
5 In-Stock
9216192161-0258DAMPER
4 In-Stock
92161A92161-7510DAMPER
Usually ships in 7-10 business days
9219092190-1401TUBE,13X16X200
2 In-Stock
