2007 Kawasaki MULE 3010 TRANS 4X4 Diesel Transmission OEM Parts Diagram

Submodel KAF950C7F Mule 3010 Trans4x4 Diesel

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TRANSMISSION

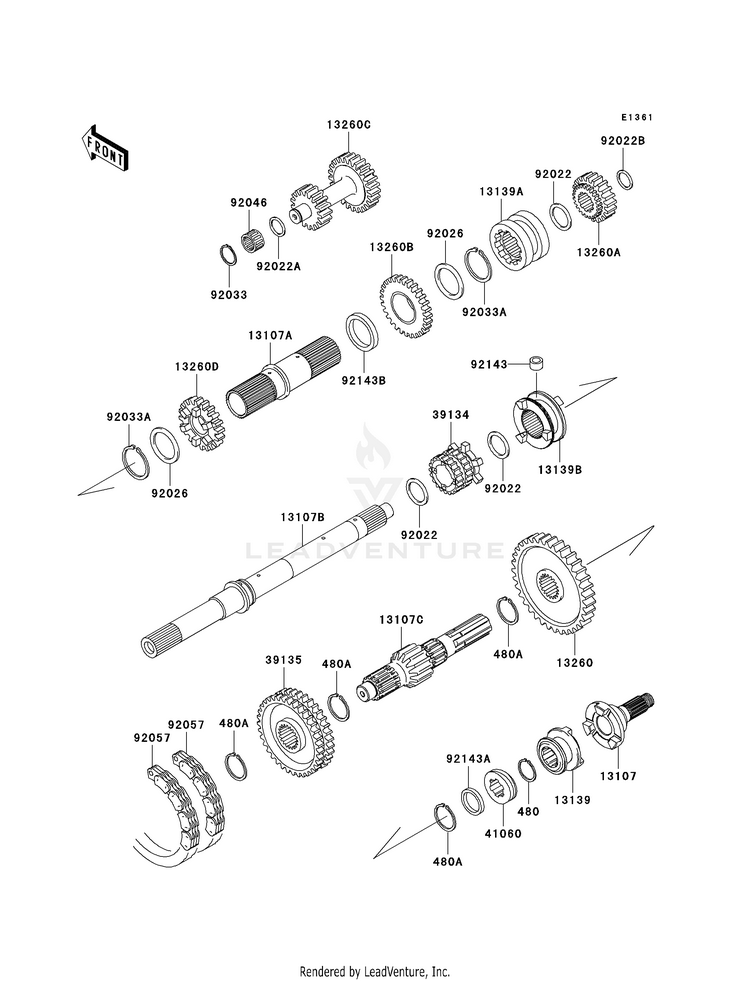

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1310713107-0106SHAFT,2WD/4WD
Usually ships in 7-10 business days
13107A13107-1309SHAFT,INPUT OUTER
Usually ships in 7-10 business days
13107B13107-1512SHAFT,INPUT
Usually ships in 7-10 business days
13107C13107-1517SHAFT,OUTPUT,14T
Usually ships in 7-10 business days
1313913139-0010SHIFTER,2WD/4WD
Usually ships in 7-10 business days
13139A13139-1069SHIFTER,SPEED,HI/LOW
Usually ships in 7-10 business days
13139B13139-1072SHIFTER,FR/RR
6 In-Stock
1326013260-1288GEAR,OUTPUT REVERSE,51T
Usually ships in 7-10 business days
13260A13260-1289GEAR,INPUT REDUCTION,20T
Usually ships in 7-10 business days
13260B13260-1290GEAR,INPUT REDUCTION,28T
Usually ships in 7-10 business days
13260C13260-1291GEAR,REDUCTION,17T&25T
Usually ships in 7-10 business days
13260D13260-1462GEAR,INPUT 28T
6 In-Stock
3913439134-1055SPROCKET-DRIVE,20T
5 In-Stock
3913539135-1055SPROCKET-DRIVEN,41T
Usually ships in 7-10 business days
4106041060-1147GEAR-METER SCREW
Usually ships in 7-10 business days
480480J2500CIRCLIP-TYPE-C,25MM
10+ In-Stock
480A480J3000CIRCLIP-TYPE-C,30MM
10+ In-Stock
9202292022-1109WASHER,25.3X33X1
Usually ships in 7-10 business days
92022A92022-255WASHER,17.3X28X1
10+ In-Stock
92022B92022-270WASHER,17.3X30X1.4
5 In-Stock
9202692026-1375SPACER,35.3X44X0.5
Usually ships in 7-10 business days
9203392033-032RING-SNAP
6 In-Stock
92033A92033-1269RING-SNAP
Usually ships in 7-10 business days
9204692046-1184BEARING-NEEDLE,K17X23X13.8
7 In-Stock
9205792057-1364CHAIN,REVERSE,81RH2520,54L
4 In-Stock
9214392143-1497COLLAR,8X14X10.5
6 In-Stock
92143A92143-1597COLLAR,25X32X4.5
Usually ships in 7-10 business days
92143B92143-1599COLLAR
Usually ships in 7-10 business days
