2007 Kawasaki MULE 3010 TRANS 4X4 Diesel Front Fender(S) OEM Parts Diagram

Submodel KAF950C7F Mule 3010 Trans4x4 Diesel

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT FENDER(S)

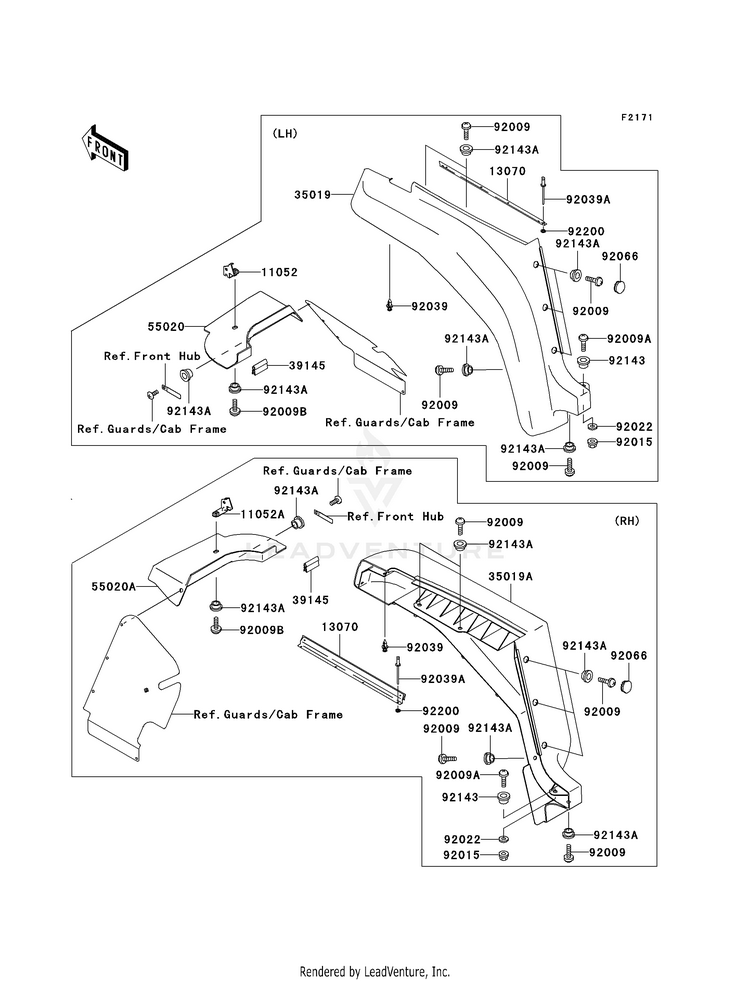

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105211052-1446BRACKET,LH
Usually ships in 7-10 business days
11052A11052-1447BRACKET,RH
Usually ships in 7-10 business days
1307013070-1403GUIDE
Usually ships in 7-10 business days
3501935019-7508-6ZFLAP,FR,LH,F.BLACK
1 In-Stock
35019A35019-7509-6ZFLAP,FR,RH,F.BLACK
Usually ships in 7-10 business days
3914539145-1136TRIM-SEAL,L=45
Usually ships in 7-10 business days
5502055020-1775GUARD,LWR,LH
Usually ships in 7-10 business days
55020A55020-1776GUARD,LWR,RH
Usually ships in 7-10 business days
9200992009-1166SCREW,TAPPING,6X16
10+ In-Stock
92009A92009-1256SCREW,6X22,BLACK
10+ In-Stock
92009B92009-1694

(replaces part #
92009-1621)

SCREW,6X16
10+ In-Stock
9201592015-1675NUT,LOCK,FLANGED,6MM
10+ In-Stock
9202292022-1346WASHER,6.5X20X1.6,BLACK
10+ In-Stock
9203992039-0865

(replaces part #
92039-1229)

RIVET
10+ In-Stock
AFTERMARKET ALTERNATIVE
$6.99$5.9910+ In-Stock
92039A92039-1244RIVET
Usually ships in 7-10 business days
9206692066-1231PLUG
9 In-Stock
9214392143-1057COLLAR
10+ In-Stock
92143A92143-1087COLLAR
10+ In-Stock
9220092200-7505WASHER,3.5X6X1
Usually ships in 7-10 business days
