1997 KTM 620 RXCe Flasher, Rear Light OEM Parts Diagram

Submodel 620 RXC-E Engine - 1997

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Flasher, Rear Light

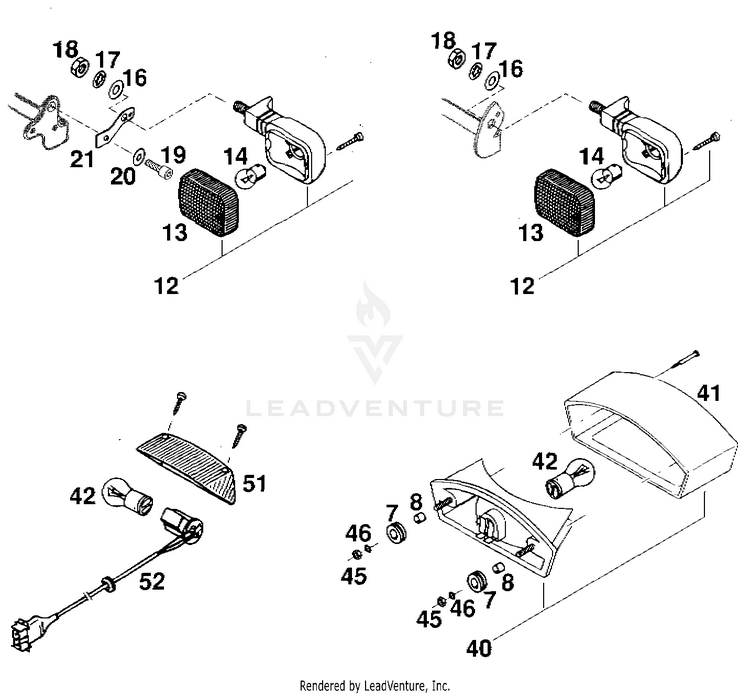

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-58311112000FLASHER REAR L/S / FRONT R/S$18.39$15.63Not Shipping
731008060000rubber grommet D=8mm open$2.99$2.5410+ In-Stock
858011039000SPACER BUSHING 6,5 X 8 X 7$2.99$2.6910+ In-Stock
1258311012000FLASHER FRONT L/S / REAR R/S$18.89$16.06Not Shipping
1358311013000FLASHER LENS L/S AND R/S$5.99$5.39Usually ships in 7-10 business days
1444111015100BULB 12V 10W (BA15S)$3.99$3.3910+ In-Stock
160125100003washer DIN 125 A 10.5$2.99$2.5410+ In-Stock
170797100003LOCK WASHER DIN6797-J10,5 ZI$1.99$1.6910+ In-Stock
180934102003HEXAGON NUT DIN0934-M10X1,25$0.00$0.00Not Shipping
190912060163AH SCREW DIN0912-M 6X16$1.99$1.6910+ In-Stock
200021060003WASHER DIN9021-A 6,4$2.99$2.5410+ In-Stock
2154611020400FLASHER BRACKET '94 | 94$0.00$0.00Not Shipping
4058311040000REAR LIGHT CPL. CEV 358 '93 | 93$55.10$46.84Usually ships in 7-10 business days
4158311041000LENS '93 | 93$32.88$27.95Usually ships in 7-10 business days
4257011045000BULB 12V 21/5W (BAY15D)$0.00$0.00Not Shipping
450985060003SELF LOCK. NUT DIN0985-M 6$2.99$2.5410+ In-Stock
460021060003WASHER DIN9021-A 6,4$2.99$2.5410+ In-Stock
5158311241000REAR LIGHT LENS ACERBIS '93 | 93$29.91$25.42Usually ships in 7-10 business days
5258311276000REAR WIRNING HARNESS '93 | 93$49.59$42.22Usually ships in 7-10 business days
