1997 KTM 620 RXCe Shock Absorber OEM Parts Diagram

Submodel 620 RXC-E Engine - 1997

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

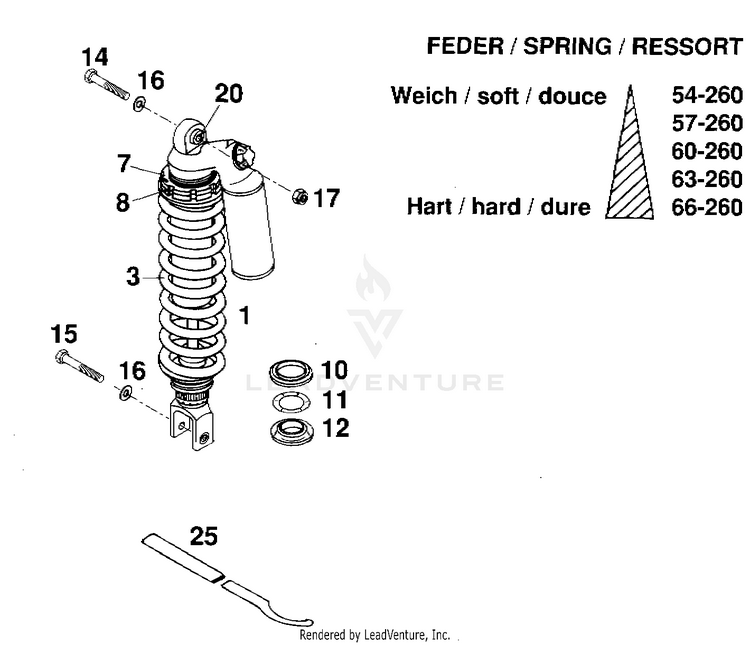

Shock Absorber

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
158304110100MONOSHOCK WP "0118S701" '96 400/640 LC4,S.MOTO,620 COMP. | 96$0.00$0.00Not Shipping
158304110500MONOSHOCK K4T97K (0118R788) | 97$0.00$0.00Not Shipping
358304011060SPRING WP 60-260 | (As Required)$0.00$0.00Not Shipping
358304011054SPRING WP 54-260 | (As Required)$0.00$0.00Not Shipping
358304011066SPRING WP 66-260$0.00$0.00Not Shipping
358304011057SPRING WP 57-260 | (As Required)$0.00$0.00Not Shipping
358304011063SPRING WP 63-260 | (As Required)$0.00$0.00Not Shipping
358304111070SPRING WP 54-260$0.00$0.00Not Shipping
754204109000COUNTER NUT$0.00$0.00Not Shipping
854204009000ADJUSTING NUT$94.08$79.97Usually ships in 7-10 business days
1058304017000RING FOR SHOCK ABSORBER$0.00$0.00Not Shipping
1158304090000O-RING 32 X 8$0.00$0.00Not Shipping
1258304018000% O-RING CARRIER 14MM HIGH$26.69$22.69Not Shipping
1456503086000SPECIAL SCREW M10X47 WS=17 | 10.9$4.99$4.49Usually ships in 7-10 business days
1556503093000SPECIAL SCREW M10X55 WS=17 | 10.9$4.99$4.247 In-Stock
160125100003washer DIN 125 A 10.5$2.99$2.5410+ In-Stock
1754310086100SELF LOCKING NUT M10 CU WS=14 | WS=14$2.99$2.5410+ In-Stock
2054204020100BUSHING CPL. D=24MM B=24MM$0.00$0.00Not Shipping
2554312024000HOOK WRENCH CPL.$0.00$0.00Not Shipping
