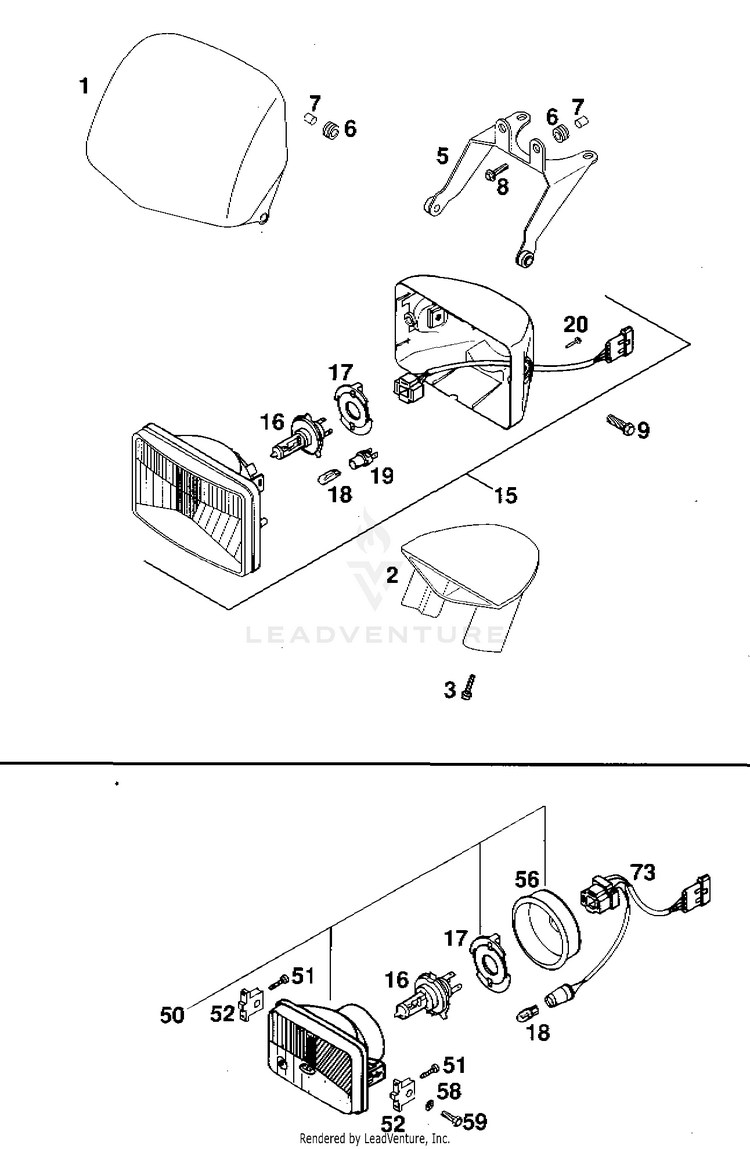

1997 KTM 620 RXCe Mask, Head Light OEM Parts Diagram

Submodel 620 RXC-E Engine - 1997

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	58311001100	HEADLIGHT MASK \| 96	$0.00	$0.00	Not Shipping
2	58311002000	SPACER WHITE \| 96	$0.00	$0.00	Not Shipping
3	0016040253	PLASTITE SCREW	$0.00	$0.00	Not Shipping
5	57611020000	HEAD LIGHT SUPPORT \| 96	$0.00	$0.00	Not Shipping
6	31008060000	rubber grommet D=8mm open	$2.99	$2.54	10+ In-Stock
7	58011039000	SPACER BUSHING 6,5 X 8 X 7	$2.99	$2.69	10+ In-Stock
8	0024060256 (replaces part # 0014060253)	HH COLLAR SCREW M6X25 TX30 \| WS=8	$3.99	$3.39	10+ In-Stock
9	0025080256 (replaces part # 0015080253)	HH collar screw M8x25 \| WS= 10	$2.41	$2.05	10+ In-Stock
15	50211510100	HEAD LIGHT CPL. \| 96	$0.00	$0.00	Not Shipping
15	50211510200	HEAD LIGHT CPL. \| 96, (As Required)	$0.00	$0.00	Not Shipping
16	57111038000	BULB H4 12V 60/55W (P43T)	$51.25	$43.56	4 In-Stock
17	49011436000	BULB HOLDER	$0.00	$0.00	Not Shipping
18	49011435100 (replaces part # 49011435000)	BULB 12V 5W (W2,1X9,5D) PHIL.	$6.15	$5.23	10+ In-Stock
19	49011439000	BULB SOCKET	$0.00	$0.00	Not Shipping
20	0981420161	SHEET MET.SCR.DIN7981 4,2X16	$0.00	$0.00	Not Shipping
50	50211510000	HEADLIGHT CEV 394 '93 \| 93	$157.84	$134.16	Not Shipping
51	0016035103	SPECIAL SCREW Z 3,5X10	$1.04	$0.94	Usually ships in 7-10 business days
52	50211510050	HEADLIGHT BRACKET '93 \| 93	$10.49	$8.92	Not Shipping
56	50211537000	RUBBER CAP	$4.19	$3.56	Not Shipping
58	0797060003	TOOTH LOCK WASH. DIN6797-A 6,4	$1.99	$1.69	10+ In-Stock
59	0933060203	HH SCREW DIN0933-M 6X20	$1.99	$1.69	10+ In-Stock
73	50211510010	CABLE FOR HEADLIGHT '93 (SGP) \| 93	-	$35.24	Not Shipping
