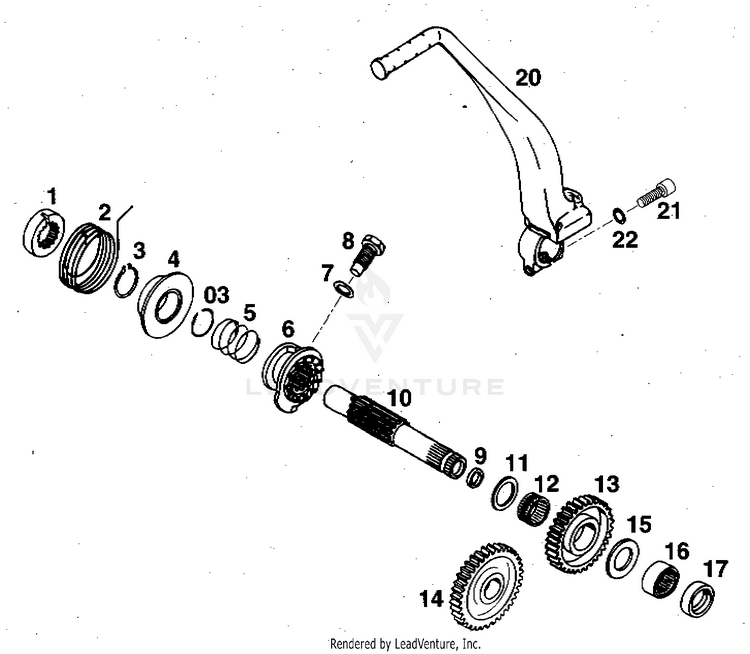

1997 KTM 620 RXCe Kickstarter OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	58033026200	DRIVING HUB '94 \| 94	$59.49	$50.57	Usually ships in 7-10 business days
2	580330200	KICKSTARTER SPRING	$0.00	$0.00	Not Shipping
3	52033096000	LOCK RING DIN0471-25X1,64SD	$6.15	$5.23	10+ In-Stock
03	0417025000 (replaces part # 52033090100)	CIRCLIP SW25	$3.99	$3.39	10+ In-Stock
4	58033037000	SPRING BUSHING	$16.68	$14.18	Usually ships in 7-10 business days
5	5803302S000	RATCHET GEAR SPRING 1,2 MM	$0.00	$0.00	Not Shipping
6	58033023200	RATCHET GEAR 24-T	$324.54	$275.86	Usually ships in 7-10 business days
7	58038022000	CU-SEAL RING DIN7603-12X18X1,5	$2.99	$2.93	10+ In-Stock
8	58033033000	STOP SCREW M12X1,5	$12.36	$10.51	Usually ships in 7-10 business days
9	54632090000	SEAL RING DH/GR 12X16X3	$12.97	$11.02	10+ In-Stock
10	58033021300	KICKSTARTER SHAFT '94 \| 94	$108.76	$92.45	Usually ships in 7-10 business days
11	58033031000	STOP DISK 22,2 X 30 X 1,5	$4.99	$4.24	10+ In-Stock
12	56533098000	NEEDLE BEARING K22X26X13H	$14.07	$11.96	9 In-Stock
13	58033022700	KICKSTARTER GEAR 35-T LOCKING TOOTH 24-T	$0.00	$0.00	Not Shipping
14	58033024000	INTERMEDIATE GEAR 37-T	$97.19	$82.61	Usually ships in 7-10 business days
15	56532012000	STOP DISK 22,2 X 35 X 2	$6.09	$5.48	Not Shipping
16	58033090000	NEEDLE BEARING RNA 4903	$32.75	$27.84	Not Shipping
17	0760223270	SHAFT SEAL RING 22X32X7 BSL	$10.00	$8.50	10+ In-Stock
20	58333036044	KICKSTARTER CPL. ALU LC4'94 \| 94	$156.15	$132.73	Not Shipping
21	0912080253	AH SCREW DIN0912-M 8X25	$2.99	$2.54	10+ In-Stock
22	36003014000	LOCK WASHER 8MM	$2.99	$2.54	10+ In-Stock
