1997 KTM 620 RXCe Special Tool OEM Parts Diagram

Submodel 620 RXC-E Engine - 1997

Shop Aftermarket Parts

Special Tool

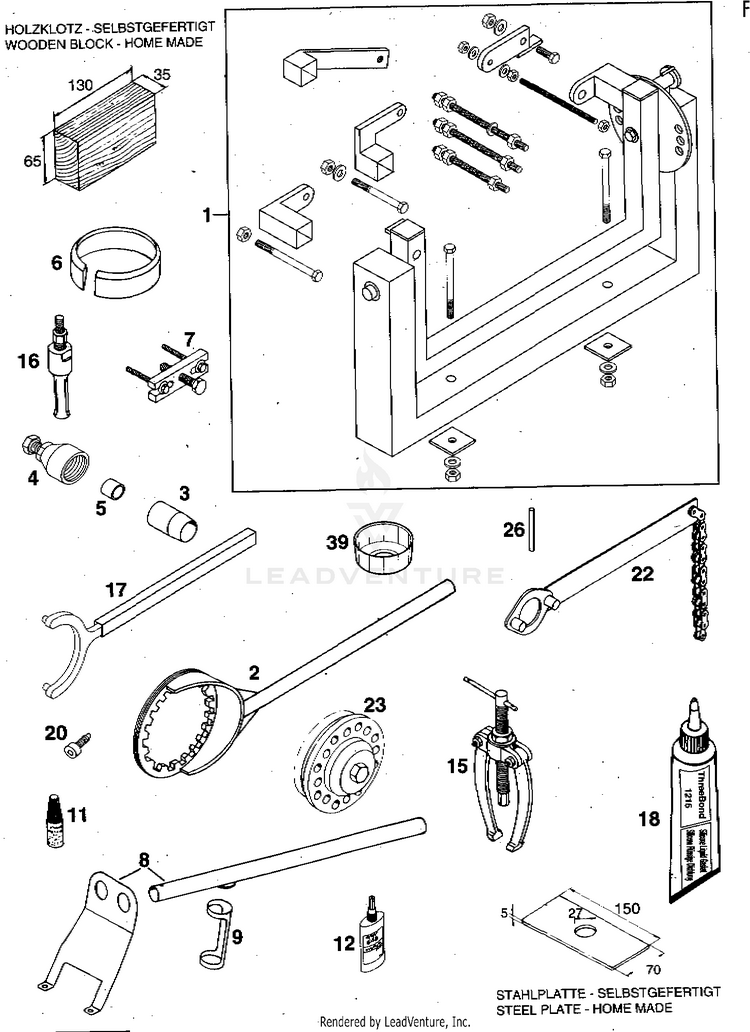

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
156012001000ASSY SUPPORT (WITHOUT HOLDER) | 96-$1,076.11Usually ships in 7-10 business days
258329003000CLUTCH HOLDER D=160MM LC4'94 | 94-$126.52Usually ships in 7-10 business days
358012005025MOUNTING SLEEVE D=25MM-$41.11Usually ships in 7-10 business days
458429009000MAGNETO EXTRACTOR-$44.08Usually ships in 7-10 business days
558429031000PROTECTOR CAP F.CRANKSHAFT M16-$23.78Usually ships in 7-10 business days
658012015089PISTON RING COMPRESSOR D=89MM-$75.781 In-Stock
658012015101PISTON RING COMPRESSOR D=101MM-$95.26Usually ships in 7-10 business days
758012021000EXTRACTOR$0.00$0.00Not Shipping
858012019000VALVE INSTALLATION KIT-$122.60Usually ships in 7-10 business days
96276470PUSH INSERT$0.00$0.00Not Shipping
116899785LOCTITE 243 BLUE 5 ML | (As Required)$32.99$28.043 In-Stock
1258429059000LOCTITE 648 GREEN 24ML | (As Required)$0.00$0.00Not Shipping
1515112017000BUSHING EXTRACTOR-$195.90Usually ships in 7-10 business days
1615112018100INTERN.BEAR.PULLER 18-23 MM-$304.29Usually ships in 7-10 business days
1615112018000INTERN.BEAR.PULLER 12-16 MM-$272.26Usually ships in 7-10 business days
1758429012000HOLDING WRENCH FOR WHEEL-$123.73Usually ships in 7-10 business days
1809098SILICON GASKET THREE-BOND$0.00$0.00Not Shipping
2058030080000LOCATING SCREW M8 L=23-$17.153 In-Stock
2251012012000HOLDING SPANNER FOR SPROCKET-$107.52Usually ships in 7-10 business days
2354629027000RIVETTING TOOL FOR CLUTCH-$257.13Usually ships in 7-10 business days
2658029026007LIMIT PLUG GAUGE F.VALVE GUIDE-$54.22Usually ships in 7-10 business days
3958329039-000WRENCH SCREW FILTER$0.00$0.00Not Shipping
