1997 KTM 620 RXCe Transmission I OEM Parts Diagram

Submodel 620 RXC-E Engine - 1997

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

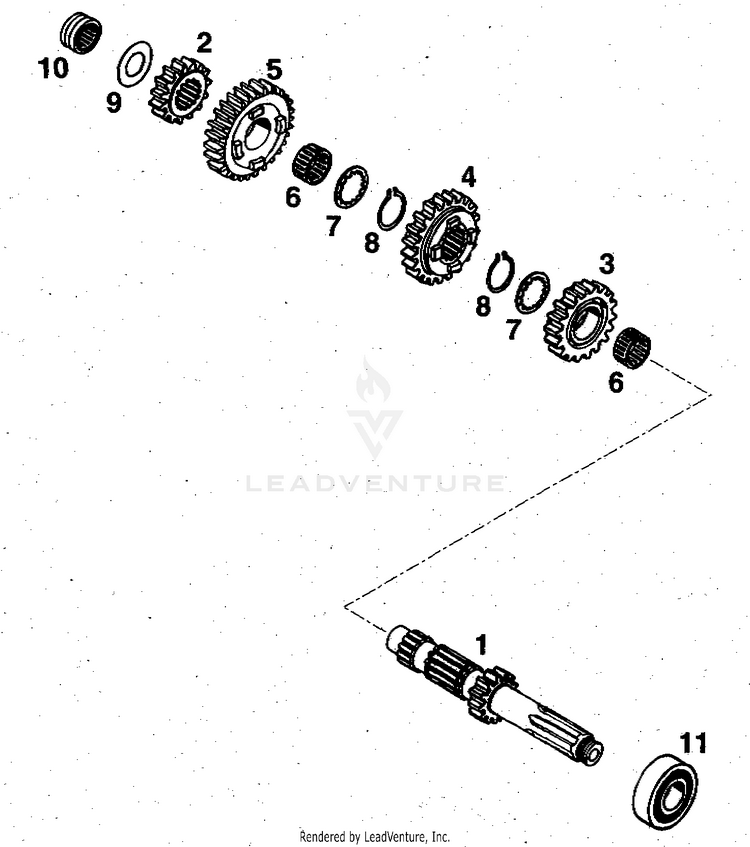

Transmission I

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
158333002100MAIN SHAFT 14-T '96 | 96$482.99$410.54Usually ships in 7-10 business days
256533010300SOLID GEAR 2.G 15-T (2G3)$142.79$121.37Usually ships in 7-10 business days
358333004002IDLER GEAR 3.G 18-T ''02''$108.47$92.20Usually ships in 7-10 business days
458333006004SLIDING GEAR 4.G 20-T ''04''$120.99$102.84Usually ships in 7-10 business days
558333008008IDLER GEAR 5.G 22-T ''08''$117.52$99.89Usually ships in 7-10 business days
60405222613

(replaces part #
56533099000)

NEEDLE BEAR. K 22X26X13 TN$10.77$9.1510+ In-Stock
756533016300STOP DISK 22,7 X 32 X 1,5$7.03$6.33Usually ships in 7-10 business days
852033096000LOCK RING DIN0471-25X1,64SD$6.15$5.2310+ In-Stock
956533015000STOP DISK 20,2 X 35 X 1$0.00$0.00Not Shipping
1056533093000NEEDLE BEARING RNA 4902 KSE$25.84$21.96Usually ships in 7-10 business days
110625201029BALL BEARING 6304/22$35.49$30.17Not Shipping
