2009 KTM 65 XC Frame OEM Parts Diagram

Submodel 65 XC Chassis - 2009

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Frame

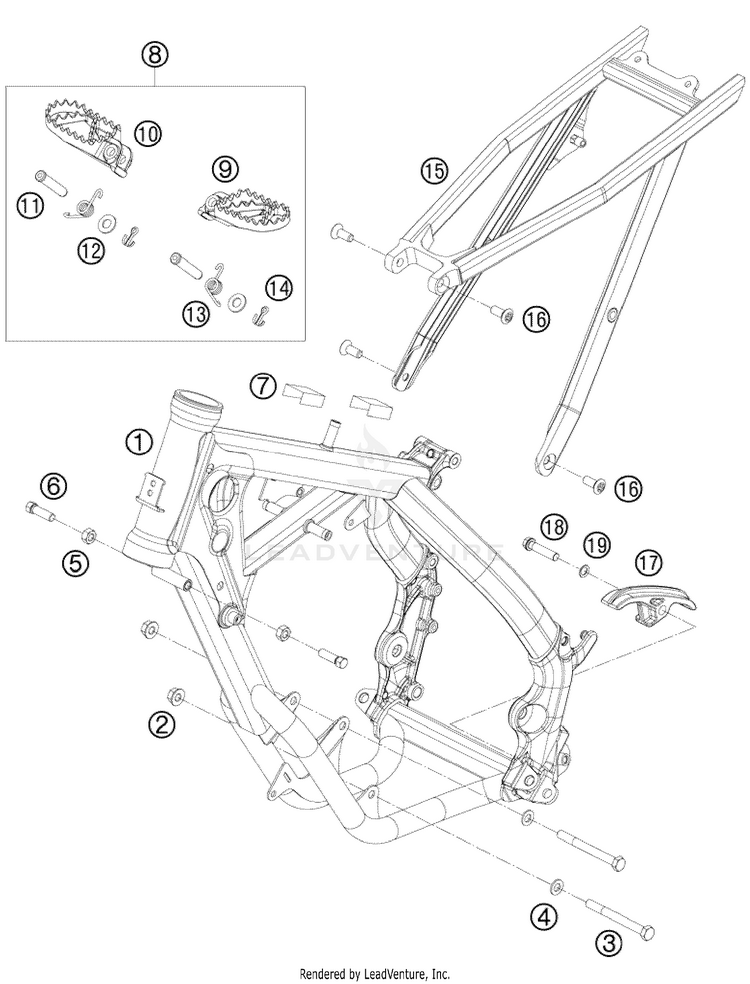

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14620300114430FRAME 65 XC ''ME09'' 09 | 09$997.91$901.12Usually ships in 7-10 business days
254310086200SELF LOCKING NUT M8 10.9 | 10.9$3.99$3.3910+ In-Stock
30931080805HH SCREW DIN 931 M8X80 10.9 | 10.9$1.99$1.6910+ In-Stock
40125080003washer DIN 125 A -8.4$1.99$1.6910+ In-Stock
50934080003HEXAGON NUT DIN0934-M 8$2.99$2.5410+ In-Stock
659001037000SPECIAL SCREW M8X26 WS=10$3.99$3.3910+ In-Stock
750307012000ADH. FOIL TRANSP. 80X80 MM 04 | 04$2.99$2.5410+ In-Stock
847103040033

(replaces part #
4700304003390)

FOOTREST CPL. 14 | 03$129.57$110.135 In-Stock
947103040000

(replaces part #
59003040050)

FOOTREST L/S | 2000$51.58$43.849 In-Stock
1047103041000

(replaces part #
59003041050)

FOOTREST R/S | 2000$50.26$42.7210+ In-Stock
1154803044000PIN FOR FOOT PED 51.5X9.8 MM | 03$14.62$12.4310+ In-Stock
120125100003washer DIN 125 A 10.5$2.99$2.5410+ In-Stock
1354603041000FOOTREST SPRING L/S & R/S$6.15$5.2310+ In-Stock
140094032250

(replaces part #
0094032253)

PIN DIN 0094-3.2X25 NIRO-$2.0810+ In-Stock
1546203002000SUB FRAME 65 SX 2009 | 2009$250.46$227.92Usually ships in 7-10 business days
160019080206SFLAT HEAD SCREW M. ISA45 M8X20$2.99$2.5410+ In-Stock
1777303053000CHAIN SLIDING PIECE BELOW 07 | 07$11.10$9.4410+ In-Stock
180025080356HH collar screw M8x35 TX40 | TX40$4.83$4.1110+ In-Stock
1936003014000LOCK WASHER 8MM$2.99$2.5410+ In-Stock
