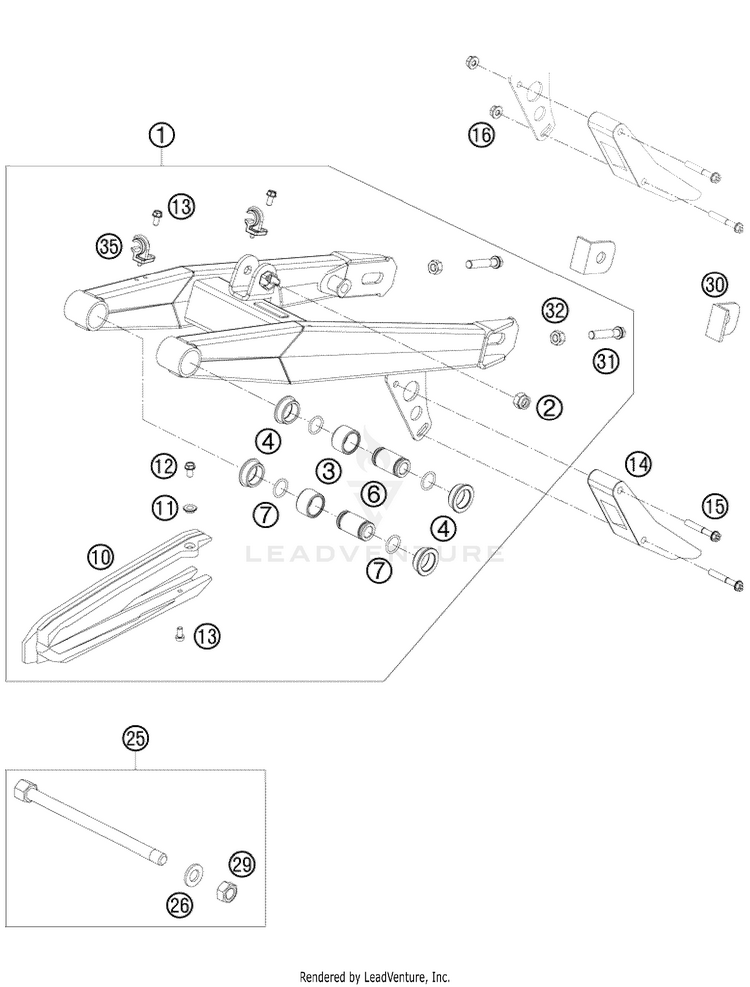

2009 KTM 65 XC Swing Arm OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	46104030144	SWING ARM CPL. 65 SX 2008 \| 2008	$682.59	$616.37	Usually ships in 7-10 business days
2	54310086100	SELF LOCKING NUT M10 CU WS=14	$2.99	$2.54	10+ In-Stock
3	54603097000	NEEDLE BUSH HK 2016	$17.70	$15.04	10+ In-Stock
4	46004030070	SPACER BUSHING 20X26X30X9,7	$3.99	$3.39	10+ In-Stock
6	46004030071	BUSHING BOX 12X20X36,5	$21.00	$17.85	10+ In-Stock
7	0770160021	O-RING 16,00X2,00 VITON	$3.99	$3.39	10+ In-Stock
10	46104066000	CHAIN SLID. GUARD FRO. 65SX 02 \| 02	$22.10	$18.78	10+ In-Stock
11	69004060150 (replaces part # 69004060050)	bushing chain protection \| 08	$4.99	$4.24	10+ In-Stock
12	0010050103	SPECIAL SCREW M 5,0X10	$2.99	$2.54	10+ In-Stock
13	0009050106 (replaces part # 0009050103)	EJOT SPIRAL SCREW SF M5X10-K	$2.09	$2.09	10+ In-Stock
14	46007066000	CHAIN GUIDE REAR 60/65 '98 \| '98	$16.49	$14.02	10+ In-Stock
15	0025060406	HH collar screw M6x40 TX30 \| TX30	$3.99	$3.39	10+ In-Stock
16	56509064100	SELF LOCKING NUT M6 10.9 \| 10.9	$2.99	$2.54	10+ In-Stock
25	46204037033	SWINGARM BOLT CPL. 201MM	$54.66	$46.46	10+ In-Stock
26	0125120003	FLAT WASHER DIN0125-A13	$1.99	$1.69	10+ In-Stock
29	0934120103	Nut M12x1 h10 WAF19 DIN 934	$2.99	$2.54	10+ In-Stock
30	46010083000	CHAIN ADJUSTER 60/65 '98 \| '98	$16.49	$14.02	10+ In-Stock
31	50203030090	HH SCREW M8X40 WS=10 \| WS=10	$4.99	$4.24	10+ In-Stock
32	0934080003	HEXAGON NUT DIN0934-M 8	$2.99	$2.54	10+ In-Stock
35	54611076100	RETAIN.CLAMP FOR BRAKE HOSE'96 \| '96	$2.99	$2.54	10+ In-Stock
