2009 KTM 65 XC Tank, Seat, Cover OEM Parts Diagram

Submodel 65 XC Chassis - 2009

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Tank, Seat, Cover

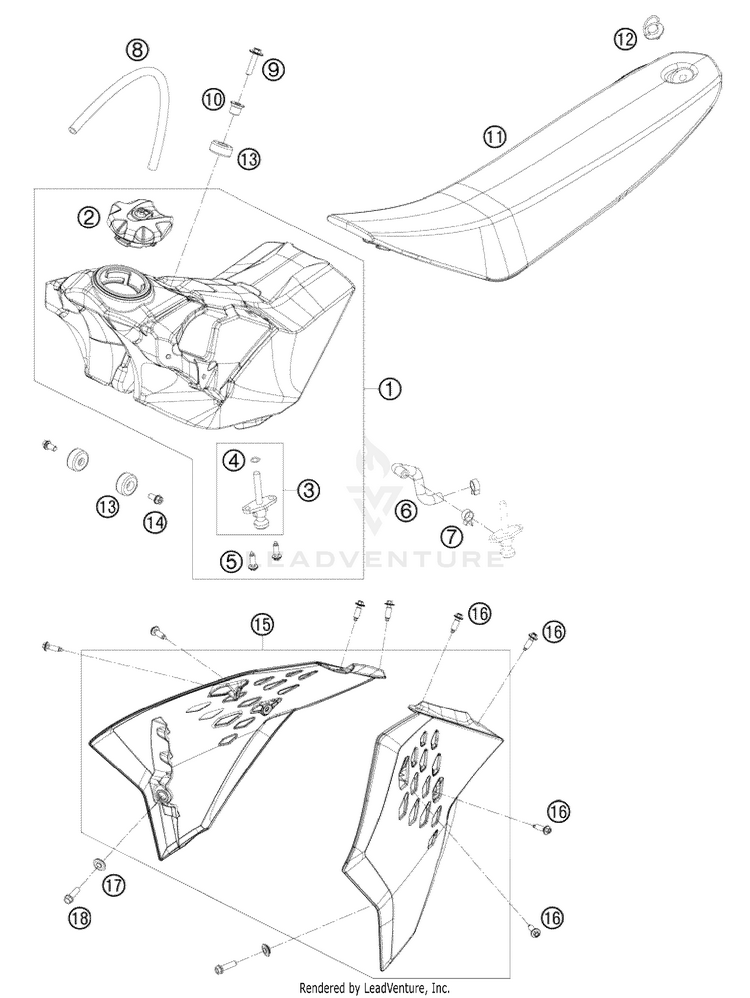

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14620701303330FUEL TANK CPL. 65 SX 2009 | 2009$141.74$120.48Usually ships in 7-10 business days
278007008044TANK PLUG CPL. EXC | 08$34.20$29.0710+ In-Stock
358507003200

(replaces part #
58507003000)

FUEL COCK CPL. | '96$31.23$26.5510+ In-Stock
40770020130

(replaces part #
55007006200)

O-RING 1,78x10,82x14,38 2-013$2.99$2.5410+ In-Stock
50017060205

(replaces part #
0017060203)

SCREW FOR PLASTIC K60X20 SW6 | WS=6$2.99$2.9210+ In-Stock
646207016000FUEL PREFORMED HOSE 65 SX 2009 | 2009$9.89$8.4110+ In-Stock
758007117000YDNAC-CLAMP 10107 10MM$3.99$3.3910+ In-Stock
878007100270

(replaces part #
78007000270)

Vent hose 5.6 x 10 x 270$3.99$3.3910+ In-Stock
90024060273COLLAR SCREW M6X27 TX | TX$3.99$3.3910+ In-Stock
1077307026000TANK BUSHING 07 | 07$4.99$4.2410+ In-Stock
1146207040000SEAT 65 SX 2009 | 2009$124.95$106.211 In-Stock
1245007040051QUICK RELEASE CPL. 50 SXR '97 | '97$23.75$20.1910+ In-Stock
1350307014000TANK ROLLER 12X26X12 '98 | '98$12.97$11.0210+ In-Stock
140025060126HH collar screw M6x12 TX30 | TX30$3.99$3.3910+ In-Stock
154620805400030ASPOILER SET BLACK 65SX/XC 09 | 09$61.41$52.20Usually ships in 7-10 business days
160017060206

(replaces part #
0017060204)

SCREW F. PLASTIC K60X20AL SW6$3.99$3.3910+ In-Stock
1779608152000

(replaces part #
50308052000)

Collar bushing 6x11x16x5áMM$2.99$2.5410+ In-Stock
180025060206HH collar screw M6x20 TX30 | TX30$3.99$3.3910+ In-Stock
