2011 KTM 50 SX Front Fork, Disassembled OEM Parts Diagram

Submodel 50 SX Chassis - 2011

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

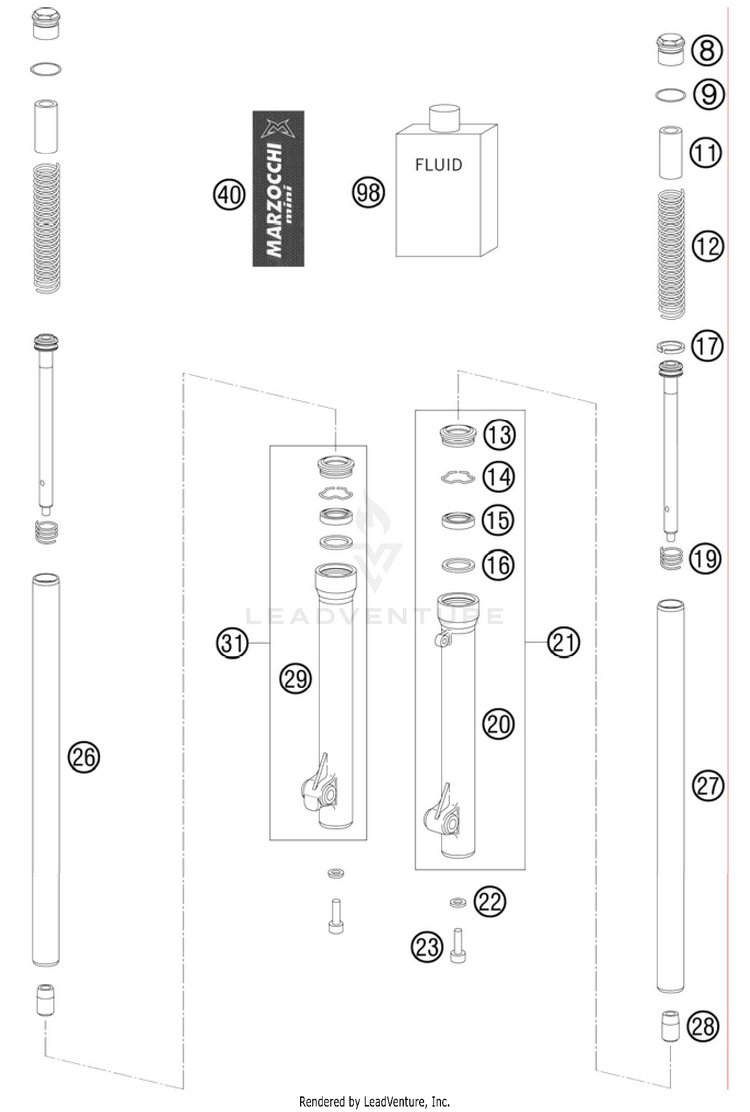

Front Fork, Disassembled

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
87504212ACPLUG CAP-$29.37Usually ships in 7-10 business days
97528010O-RING$1.18$1.06Not Shipping
117518076PRE LOAD BUSH 25X2,5X100$15.21$12.93Usually ships in 7-10 business days
1275141169SPRING 2N/MM$17.39$14.78Not Shipping
1275141214SPRING 2,5N/MM | (As required)$14.14$12.02Not Shipping
137533297DUST SEAL-$16.43Not Shipping
147523264STOP RING$5.07$4.31Not Shipping
157528230OIL SEAL 32/42/6,5-9,5$17.82$15.15Not Shipping
167522166AAWASHER D42X32,5X1,5$5.69$4.84Not Shipping
177524157PISTON RING D32$3.01$2.56Not Shipping
1975141015REBOUND SPRING-$6.02Not Shipping
2075031570ASLIDER L/S 50 LC | 2002-$161.12Not Shipping
2175031570A/RSLIDER CPL. L/S 50LC | 2002-$177.72Usually ships in 7-10 business days
227522225WASHER 14X8X1,5$1.04$0.88Not Shipping
230912080303AH SCREW DIN0912-M 8X30$2.99$2.5410+ In-Stock
267708249RGABELHOLM RECHTS SENIOR 02 | 02$208.41$177.15Usually ships in 7-10 business days
277708250/RFORK TUBE L/S SENIOR 02 | 02$191.59$162.85Not Shipping
287512068FOOT BUFFER$9.96$8.96Not Shipping
2975031571ASLIDER R/S 50 LC | 2002-$164.63Not Shipping
3175031571A/RSLIDER CPL. R/S 50LC | 2002$0.00$0.00Not Shipping
407547331STICKER RIGHT SIDE MARZOCCHI$14.30$12.16Not Shipping
407547325STICKER LEFT SIDE MARZOCCHI$14.30$12.16Not Shipping
987550013FORKOIL EBH16 SAE 7.5$0.00$0.00Not Shipping
