2011 KTM 50 SX Tank, Seat, Covers OEM Parts Diagram

Submodel 50 SX Chassis - 2011

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Tank, Seat, Covers

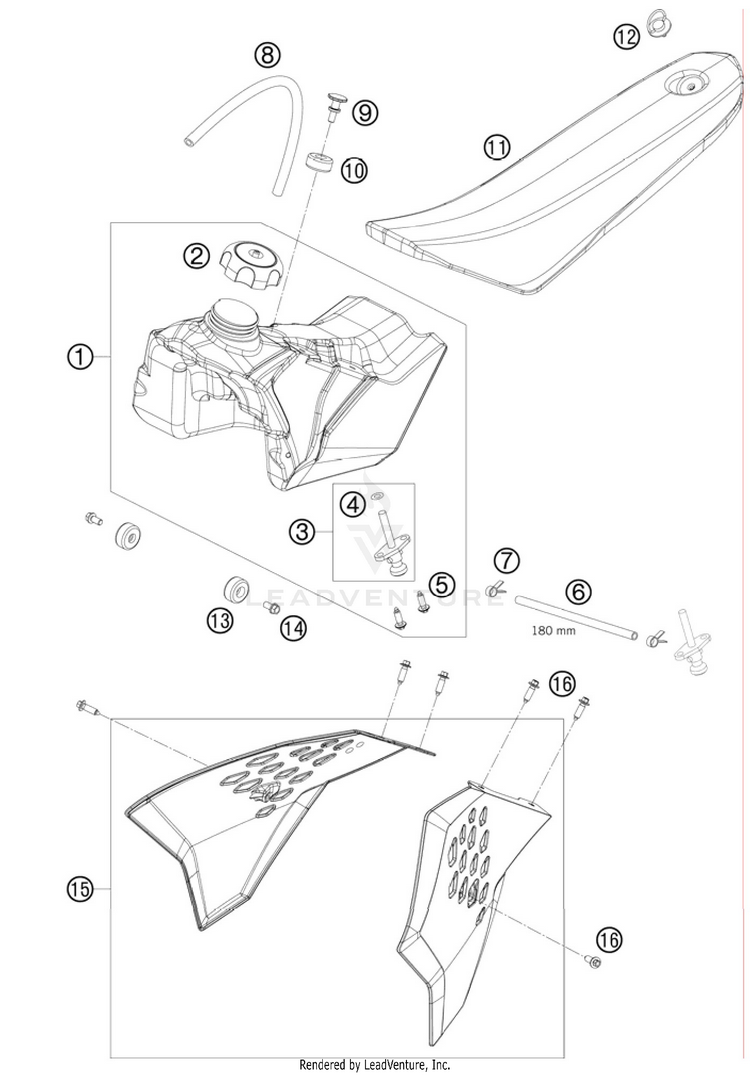

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14520701303330FUEL TANK CPL. 50 SX 2009 | 2009$222.59$189.20Usually ships in 7-10 business days
249007008044FILLER CAP CPL. SMALL$27.82$23.6510+ In-Stock
358507003200

(replaces part #
58507003000)

FUEL COCK CPL. | '96$31.23$26.5510+ In-Stock
40770020130O-RING 1,78x10,82x14,38 2-013$2.99$2.5410+ In-Stock
50017060205

(replaces part #
0017060203)

SCREW FOR PLASTIC K60X20 SW6 | WS=6$2.99$2.9210+ In-Stock
658307016001FUEL HOSE VITON 6X1,5 PER/M$43.11$36.6410+ In-Stock
745031005000YDNAC-CLAMP FUEL HOSE (8MM)$1.99$1.6910+ In-Stock
878007100270

(replaces part #
78007000270)

Vent hose 5.6 x 10 x 270$3.99$3.3910+ In-Stock
945107011000TANK SCREW MINI 50 2001 | 2001$10.44$8.8710+ In-Stock
1050307014000TANK ROLLER 12X26X12 '98 | '98$12.97$11.0210+ In-Stock
1145207040000SEAT 50 SX 09 | 09$121.32$103.121 In-Stock
1245007040051QUICK RELEASE CPL. 50 SXR '97 | '97$23.75$20.1910+ In-Stock
1350307014000TANK ROLLER 12X26X12 '98 | '98$12.97$11.0210+ In-Stock
140025060126HH collar screw M6x12 TX30 | TX30$3.99$3.3910+ In-Stock
1545208054000X4CSPOILERSET$99.84$84.86Usually ships in 7-10 business days
160017060206

(replaces part #
0017060204)

SCREW F. PLASTIC K60X20AL SW6 | WS=6$3.99$3.3910+ In-Stock
