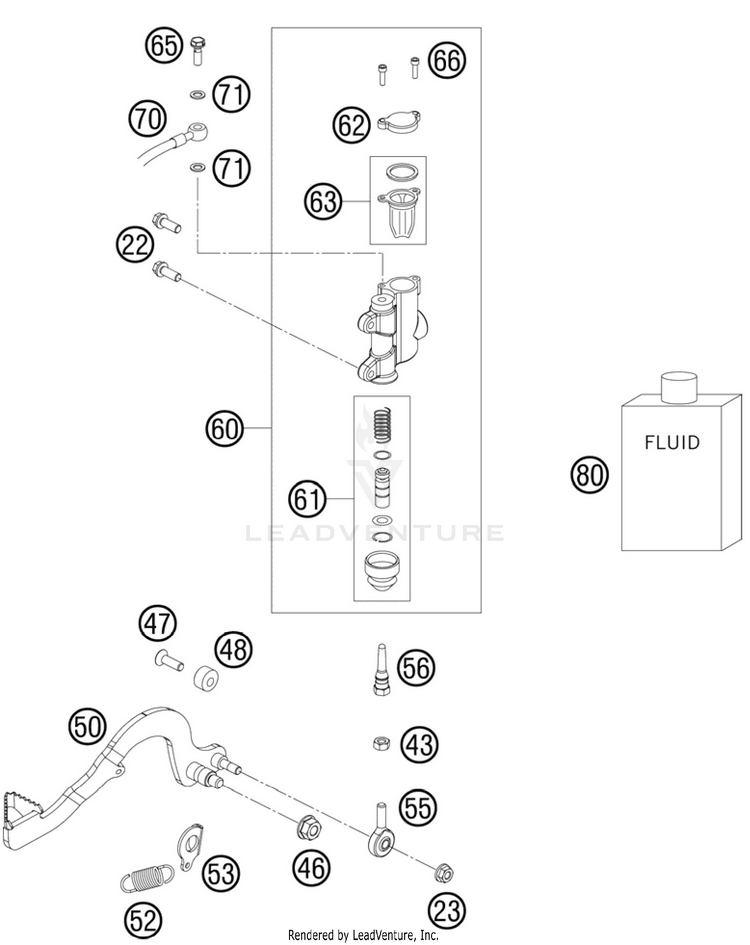

2011 KTM 50 SX Rear Break Controll OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
22	0025060166	HH collar screw M6x16 TX30 \| TX30	$2.99	$2.54	10+ In-Stock
23	56509064100	SELF LOCKING NUT M6 10.9 \| 10.9	$2.99	$2.54	10+ In-Stock
43	0934060003	hex nut DIN 934 M6	$1.99	$1.69	10+ In-Stock
46	54310086200	SELF LOCKING NUT M8 10.9 \| 10.9	$3.99	$3.39	10+ In-Stock
47	0991060202	FLAT HEAD DIN7991-M 6X20	$2.99	$2.54	10+ In-Stock
48	58303063000	BRAKE LEVER STOP '93 \| '93	$7.03	$5.98	8 In-Stock
50	45213050044 (replaces part # 45213050000)	brake pedal cpl. 50 SX '09	$135.62	$115.28	10+ In-Stock
52	54603062200 (replaces part # 54603062000)	Return spring for brake lever	$7.69	$6.54	10+ In-Stock
53	45213053000	LOCK WASHER 50 SX	$7.58	$6.44	10+ In-Stock
55	54813055100 (replaces part # 54813055000)	Joint head CMP6 \| 03	$23.42	$19.91	10+ In-Stock
56	47013056100	PRESSURE ROD 85 SX 06 \| 06	$15.39	$13.08	10+ In-Stock
60	46113060000	REAR BRAKE CYL. 50+65 04 \| 04	$178.96	$152.12	10+ In-Stock
61	47013061000	REP. SET PISTON REAR D=11 2003 \| 2003	$49.60	$42.16	10+ In-Stock
62	47013062000	CYLINDER COVER REAR 85 SX 03 \| 03	$10.44	$8.87	10+ In-Stock
63	47013063000	GASKET CYLINDER COVER REAR 03 \| 03	$12.64	$10.74	10+ In-Stock
65	46113325000	HOLLOW SCREW M6	$23.09	$19.63	1 In-Stock
66	0912040103	AH.SCREW DIN0912-M 4X10	$2.99	$2.54	10+ In-Stock
70	45113170000	BRAKE HOSE REAR 50 LC 04 \| 04	$74.46	$63.29	10+ In-Stock
71	0770060019	O-RING 6,00X1,00 FORMULA	$2.99	$2.54	10+ In-Stock
80	00062030000	BRAKE FLUID DOT5.1 0,25L \| 0,25L	$15.99	$13.59	10+ In-Stock
