2017 KTM 250 SX Balancer Shaft OEM Parts Diagram

Submodel 250 SX ENGINE - 2017

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

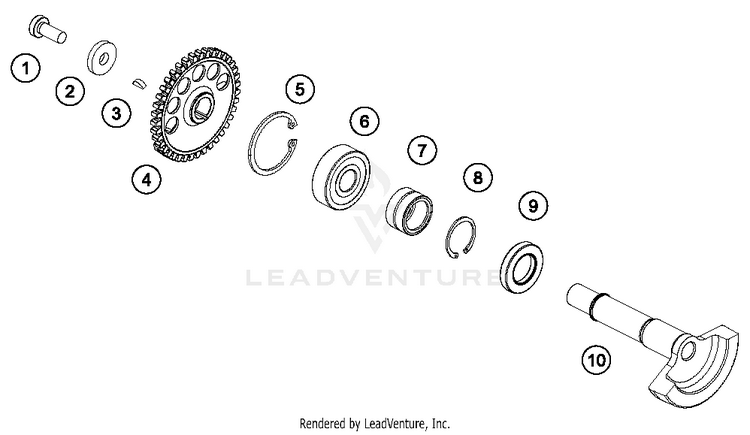

Balancer Shaft

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10035080206SSHCS M8x20 TX45$6.26$5.3210+ In-Stock
2340084234WASHER DIN 6340 8,4X23X4$0.69$0.621 In-Stock
3888030037WOODRUFF KEY DIN6888-3X3,7$0.99$0.84Not Shipping
455430056000AGW-GEAR WHEEL$164.77$140.057 In-Stock
5472042175CIRCLIP DIN0472-42X1,75$1.79$1.611 In-Stock
6625063022GROOVED BALL BEARING 6302 C3$9.49$8.07Not Shipping
755430058000NEEDLE BEARING NK20X16XL$20.78$17.6610+ In-Stock
855430059000FUSE RING JV 27$0.00$0.00Not Shipping
947030076100SEAL SHAFT RING 20X35X6 BTSL$25.29$21.5010+ In-Stock
10A44030057000

(replaces part #
55430057100)

Balancer shaft$117.69$100.0410+ In-Stock
