2017 KTM 250 SX Water Pump OEM Parts Diagram

Submodel 250 SX ENGINE - 2017

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

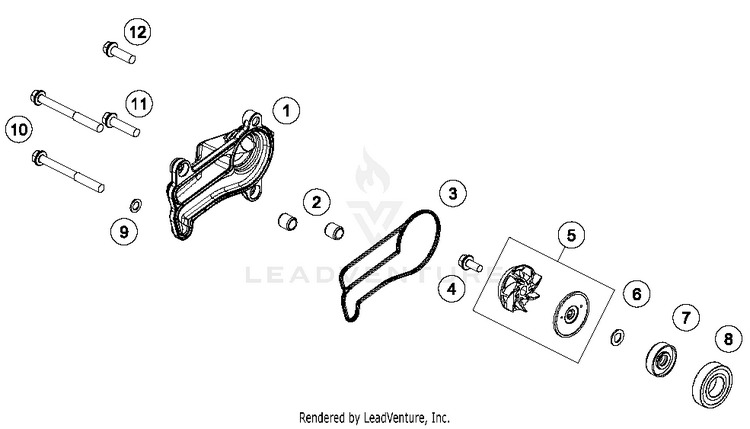

Water Pump

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
155435052000WATER PUMP COVER$31.23$26.552 In-Stock
249030090100DOWEL 9,8 X7X10$2.99$2.8310+ In-Stock
355435053000GASKET WATER PUMP COVER$12.53$10.6510+ In-Stock
40014050123HH COLLAR SCREW M 5X12 WS=6$2.99$2.5410+ In-Stock
579235055044WATER PUMP WHEEL CPL.$18.14$15.4210+ In-Stock
650435049000PREFORMED WASHER$4.99$4.2410+ In-Stock
70760082472SHAFT SEAL RING 8X24X7 A DUO$9.01$7.6610+ In-Stock
80625160020BALL BEARING 16002 C3$22.43$19.0710+ In-Stock
90603061001CU-SEAL RING DIN7603-6X10X1$2.99$2.5410+ In-Stock
