Hand Brake Cylinder

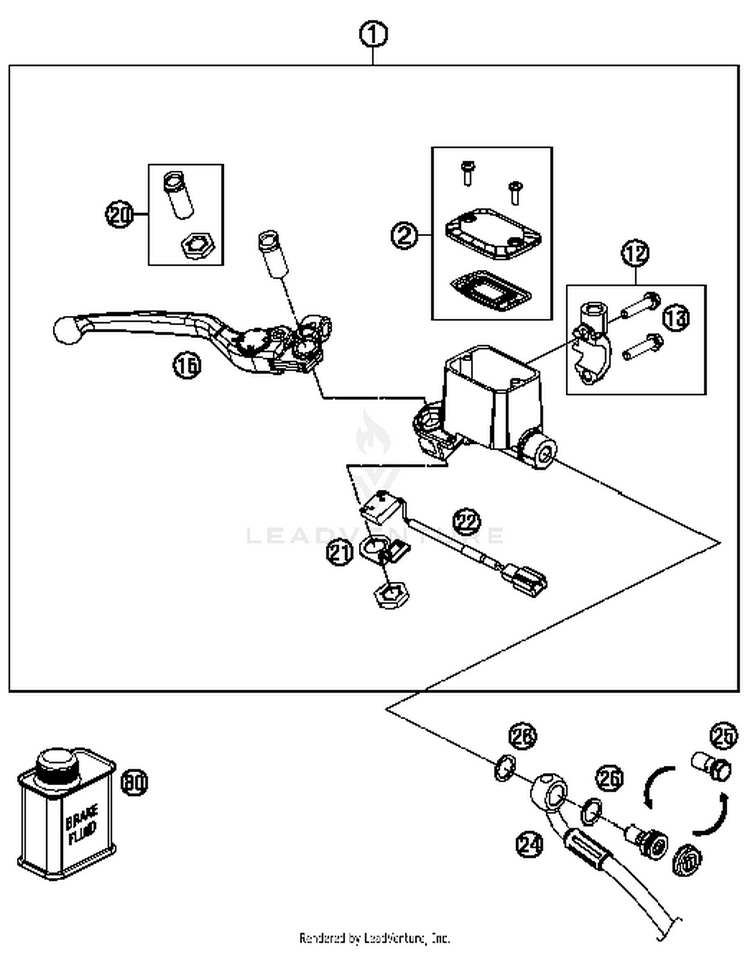

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
176013001033HAND BRAKE CYLINDER ASSY$385.98$328.089 In-Stock
276013012000COVER HAND BRAKE CYLINDER CPL.$30.79$26.178 In-Stock
1276013005000CLAMP CPL.$77.76$66.10Usually ships in 7-10 business days
130025060256HH collar screw M6x25 TX30 | TX30$3.99$3.3910+ In-Stock
1558713002100HAND BRAKE LEVER LOOSE ADJ. 03$103.72$88.164 In-Stock
2076013006000LEVER SCREW CPL.$36.95$31.417 In-Stock
2176011040000BRACKET F. BRAKE LIGHT SWITCH$21.22$18.043 In-Stock
2276011050000BRAKE LIGHT SWITCH FRONT$58.29$49.558 In-Stock
2476042002000BRAKE PIPE$49.27$41.88Usually ships in 7-10 business days
2562113020100banjo bolt M10x1x19.5$10.33$8.787 In-Stock
260603100141sealing ring DIN 7603 10x14x1$2.99$2.5410+ In-Stock
8000062030000BRAKE FLUID DOT5.1 0,25L$15.99$13.5910+ In-Stock
