Instruments / Lock System

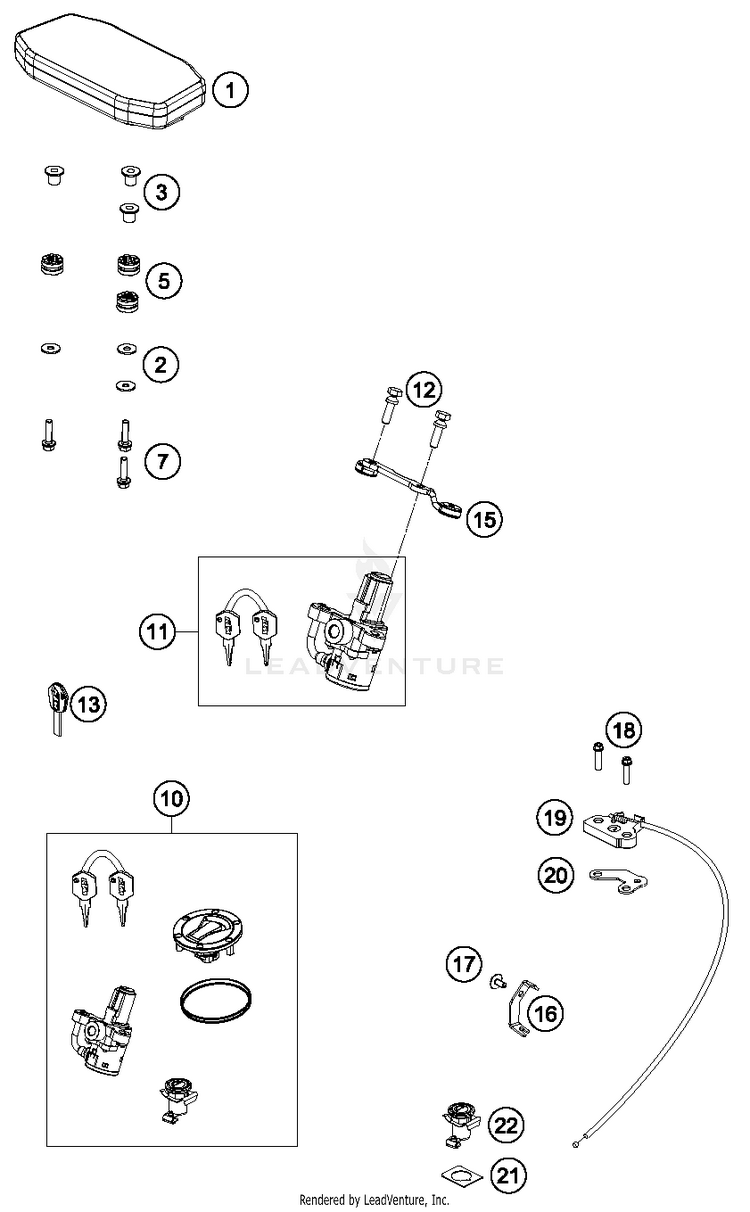

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
176014269000INSTRUMENT PACK$1,145.20$973.42Usually ships in 7-10 business days
20021050003washer DIN 9021 A - 5.3$1.99$1.6910+ In-Stock
376014069050COLLAR BUSHING 5,5X9X15X11,5$3.99$3.59Usually ships in 7-10 business days
561314069051DAMP. COMPONENT SPEEDOMETER$6.26$5.3210+ In-Stock
70025050206HH collar screw M5x20 TX30 | TX30$2.99$2.5410+ In-Stock
1076011066044LOCK SET$170.93$145.29Usually ships in 7-10 business days
1176011066000IGNITION + STEERING LOCK$76.22$64.79Usually ships in 7-10 business days
1276011064200

(replaces part #
76011064000)

Tear-off screw M6 ignition lock ISA30 MK$3.99$3.592 In-Stock
1376011067100BLANK KEY 690 | As Required$17.31$14.71Usually ships in 7-10 business days
1576011066095ALU PLATE IGNITION LOCK COVER$25.51$21.68Usually ships in 7-10 business days
1676007051000SEAT LOCK BRACKET$9.12$8.21Usually ships in 7-10 business days
170900000601203

(replaces part #
0024060123)

HH ISR collar screw M6x12-10.9 ISA30$1.99$1.6910+ In-Stock
180025060256HH collar screw M6x25 TX30 | TX30$3.99$3.3910+ In-Stock
1976007050050SEAT LOCKING MECHANISM$21.11$17.94Usually ships in 7-10 business days
2076007052000BRACKET SEAT LOCKING MECHANISM$11.65$9.90Usually ships in 7-10 business days
2176007053000ANTI-ROTATION ELEMENT SEATLOCK$3.99$3.59Usually ships in 7-10 business days
2276007050000SEAT LOCK$48.39$41.13Usually ships in 7-10 business days
