2017 KTM 690 Duke Lighting System OEM Parts Diagram

Submodel 690 DUKE WHITE CHASSIS - 2017

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

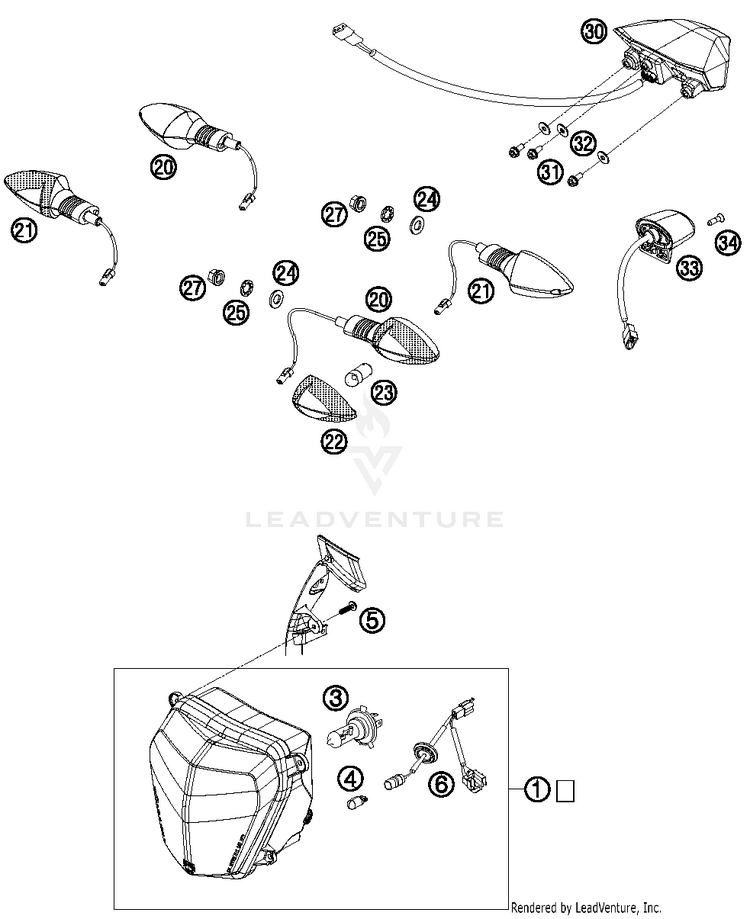

Lighting System

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
176014001044HEAD LIGHT CPL.$186.33$158.38Usually ships in 7-10 business days
357111038000BULB H4 12V 60/55W (P43T)$51.25$43.564 In-Stock
449011435100BULB 12V 5W (W2,1X9,5D) PHIL.$6.15$5.2310+ In-Stock
50081050181SCREW FOR PLASTIC K50X18 T20$2.99$2.5410+ In-Stock
676011079000HARNESS HEAD LIGHT$69.73$59.27Usually ships in 7-10 business days
2060114025000FLASHER CPL.FRONT L/S REAR R/S$35.30$30.0010+ In-Stock
2160114026000FLASHER CPL.FRONT R/S REAR L/S$35.30$30.0010+ In-Stock
2260114028000FLASHER LENS L/S R/S TRANSP.06$6.48$5.5110+ In-Stock
2360114027000BULB 12V ORANGE (RY10W)$7.80$6.6310+ In-Stock
240433100003WASHER 18x10,5x1,6$1.99$1.6910+ In-Stock
250797100003LOCK WASHER DIN6797-J10,5 ZI$1.99$1.6910+ In-Stock
2758414030000HH COLLAR NUT M10X1,25 WS=13$2.99$2.5410+ In-Stock
3076014040100

(replaces part #
76014040000)

Tail light$146.29$124.351 In-Stock
310025050126HH collar screw M5x12 TX30 | TX30$3.99$3.3910+ In-Stock
320021050003washer DIN 9021 A - 5.3$1.99$1.6910+ In-Stock
3376014047000LICENSE PLATE ILLUMINATION LED$66.21$56.28Usually ships in 7-10 business days
340081250181SCREW FOR PLASTIC 50X18 T20$1.99$1.6910+ In-Stock
