1974 Yamaha GT80/MX Crankcase - Cylinder OEM Parts Diagram

Submodel GT80A - 1974

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE - CYLINDER

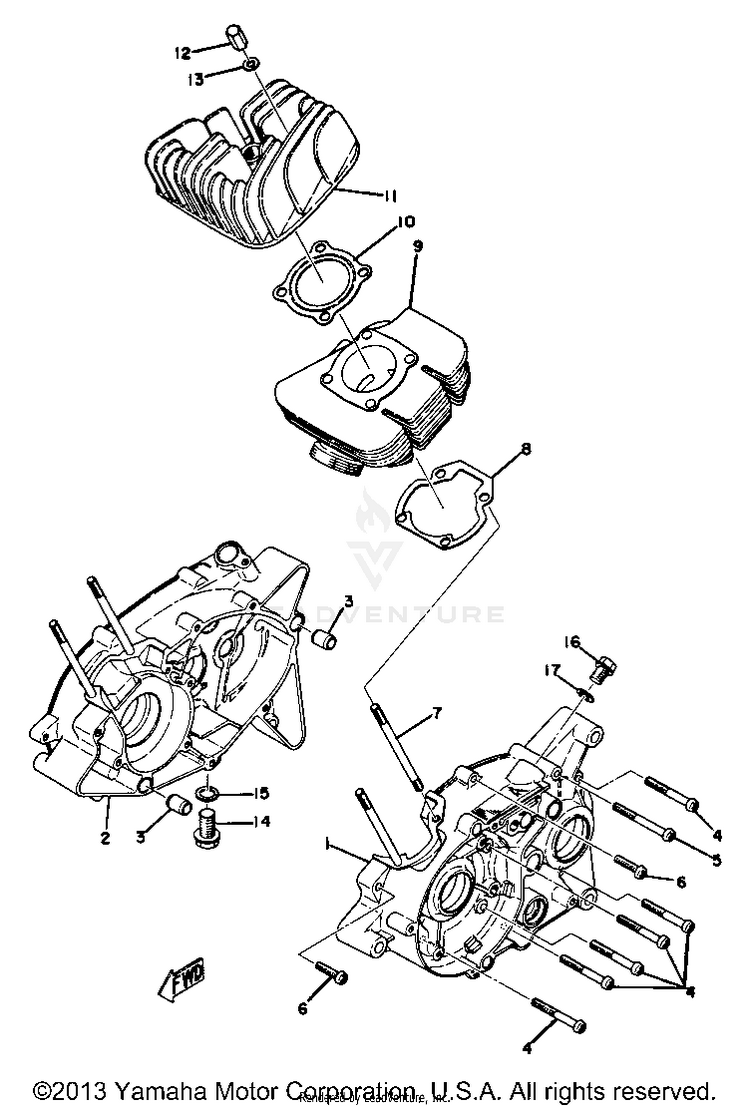

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-374-15121-02-00CRANKCASE 2$186.99$145.85Usually ships in 7-10 business days
-374-15111-00-00CRANKCASE 1$136.99$106.85Usually ships in 7-10 business days
-374-11111-00-00HEAD, CYLINDER$94.99$74.09Usually ships in 7-10 business days
1367-15111-01-98CRANKCASE 1 | FROSTING BLK$136.99$106.85Usually ships in 7-10 business days
2367-15121-07-00CRANKCASE 2 | FROSTING BLK$193.99$151.31Usually ships in 7-10 business days
399530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
498580-06550-00SCREW, PAN HEAD$9.49$7.409 In-Stock
598580-06555-00

(replaces part #
98580-06055-00)

SCREW,PANHEAD$5.99$4.672 In-Stock
698517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
790116-06026-00BOLT, STUD$4.60$3.9610+ In-Stock
8367-11351-01-00

(replaces part #
367-11351-00-00)

GASKET,CYLINDER$7.49$5.844 In-Stock
9367-11311-00-00CYLINDER 1$180.99$141.17Not Shipping
102F4-11181-00-00

(replaces part #
1F5-11181-00-00)

GASKET, CYLINDER HEAD 1 (80E)$55.99$43.673 In-Stock
11367-11111-01-R4HEAD, CYLINDER 1 | HEAT PROOF BLK$93.99$73.31Usually ships in 7-10 business days
1290176-06002-00NUT, CROWN$6.49$5.062 In-Stock
1392990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
1490340-12005-00PLUG, STRAIGHT SCREW$9.49$7.405 In-Stock
1590430-12207-00GASKET$8.49$6.6210+ In-Stock
1690340-10003-00PLUG, STRAIGHT SCREW$9.49$7.404 In-Stock
1790430-10171-00

(replaces part #
90430-10031-00)

BOLT, UNION$3.45$2.9710+ In-Stock
