1974 Yamaha GT80/MX Kick - Starter OEM Parts Diagram

Submodel GT80A - 1974

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

KICK - STARTER

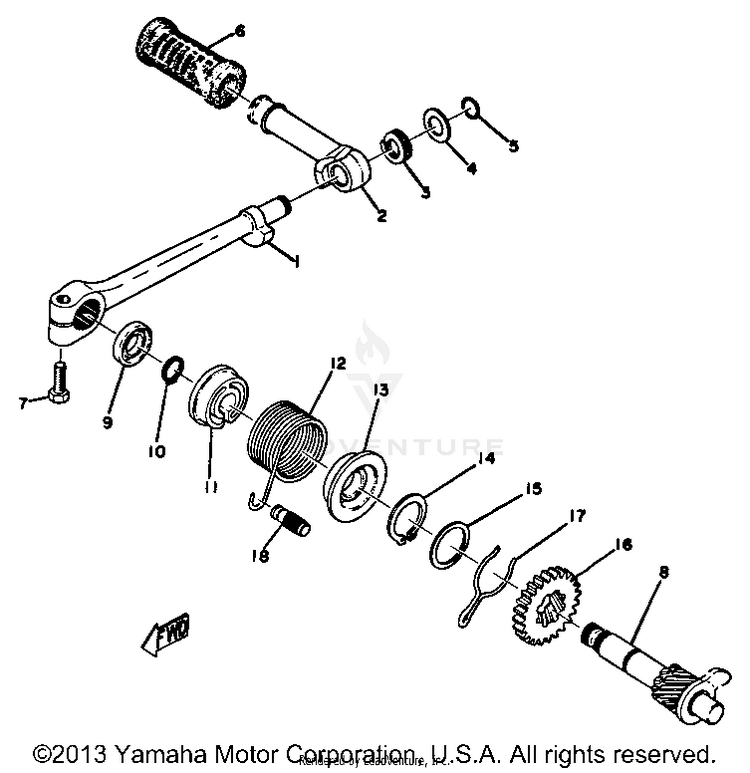

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-97017-06025-00

(replaces part #
97011-06025-00)

BOLT | MUST USE W/LUCK CRANK 367-01$4.55$3.9110+ In-Stock
13AY-15620-00-00KICK CRANK ASSEMBLY$122.99$95.93Usually ships in 7-10 business days
2214-15612-09-00LEVER, KICK$15.49$12.70Not Shipping
390504-18031-00SPRING, COMPRESSION$10.49$8.188 In-Stock
490209-10210-00

(replaces part #
90209-10108-00)

WASHER,SPEC'L SHAPE$2.35$2.12Not Shipping
593440-10028-00CIRCLIP, OUTER$2.55$2.30Not Shipping
6156-15618-01-00COVER, KICK LEVER$8.49$6.6210+ In-Stock
797017-06020-00

(replaces part #
97011-06020-00)

BOLT | MUST USE W/LUCK CRANK 367-00$4.06$3.4910+ In-Stock
8353-15660-01-00KICK AXLE ASSEMBLY$119.99$93.59Usually ships in 7-10 business days
993109-15001-00OIL SEAL, SDO-TYPE$9.49$7.408 In-Stock
1099009-15400-00CIRCLIP (55X)$9.49$7.4010+ In-Stock
11132-15676-01-00COVER, SPRING$10.99$9.01Usually ships in 7-10 business days
1290508-26136-00SPRING, TORSION$16.49$12.86
13132-15664-01-00GUIDE, SPRING$11.99$9.83Usually ships in 7-10 business days
1493410-25017-00CIRCLIP, S-TYPE$4.05$3.4810+ In-Stock
1590201-253K0-00WASHER, PLATE (T=1.0)$9.49$7.4010+ In-Stock
16353-15641-00-00GEAR, KICK (24T)$64.99$50.69Usually ships in 7-10 business days
1790468-26038-00CLIP$7.99$7.19Usually ships in 7-10 business days
18248-15668-00-00STOPPER$8.49$6.6210+ In-Stock
