1974 Yamaha GT80/MX Exhaust OEM Parts Diagram

Submodel GT80A - 1974

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

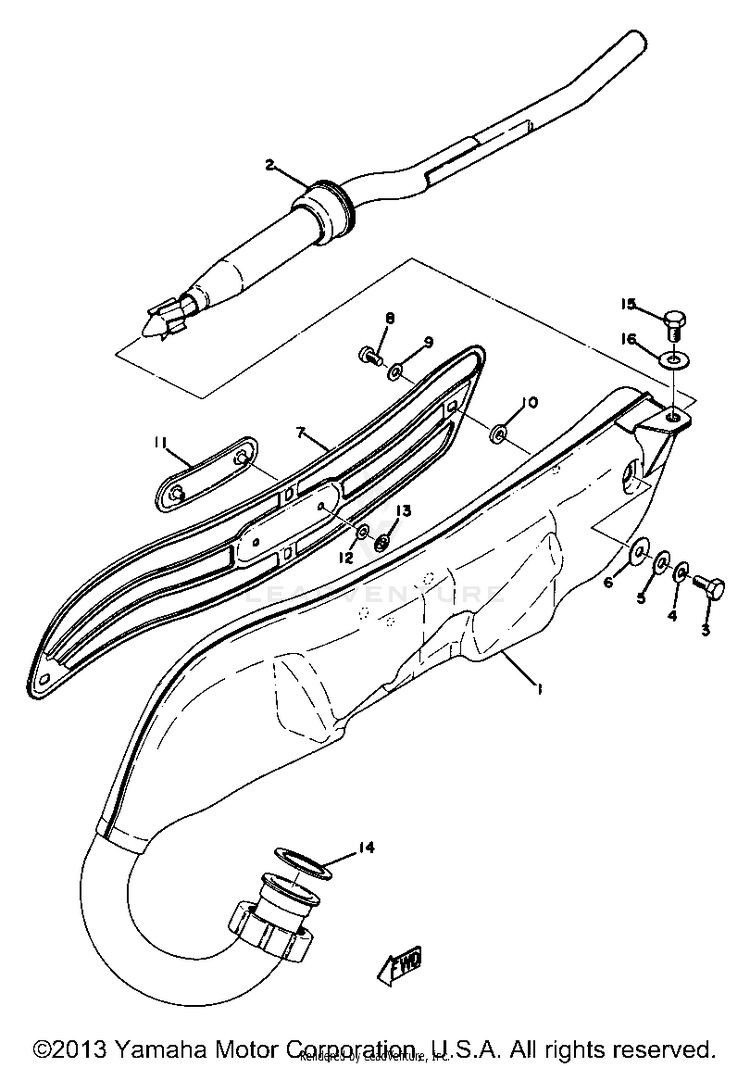

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-367-14729-32-00EMBLEM, PROTECTOR$8.88$7.99Usually ships in 7-10 business days
1367-14610-31-00EXHAUST PIPE ASSEMBLY L$95.67$74.62Not Shipping
2367-14752-30-00PIPE, OUTLET$38.38$31.47Not Shipping
397D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
590201-06M08-00WASHER, PLATE$2.55$2.197 In-Stock
690430-05223-00

(replaces part #
90430-05010-00)

GASKET$2.60$2.34Not Shipping
7367-14718-30-00PROTECTOR, MUFF 1$30.30$24.85Usually ships in 7-10 business days
898980-06010-00

(replaces part #
98903-06010-00)

SCREW, BIND$10.49$8.6310+ In-Stock
990202-05187-00WASHER, PLATE$1.70$1.4610+ In-Stock
1090202-05188-00

(replaces part #
90202-05005-00)

WASHER, PLATE$9.49$7.404 In-Stock
11367-14729-31-00EMBLEM, PROTECTOR$13.36$10.96Not Shipping
1290202-04003-00WASHER, PLATE$9.49$8.54Usually ships in 7-10 business days
1390183-04005-00NUT, SPRING-$1.6710+ In-Stock
143MT-14613-00-00

(replaces part #
132-14613-00-00)

GASKET, EXST PIPE$11.99$9.355 In-Stock
1590101-08691-00

(replaces part #
97313-08018-00)

BOLT, HEX-$5.0410+ In-Stock
1692990-08200-00WASHER, PLAIN$3.05$2.6210+ In-Stock
