1976 Yamaha TY175 Crankcase OEM Parts Diagram

Submodel TY175C - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

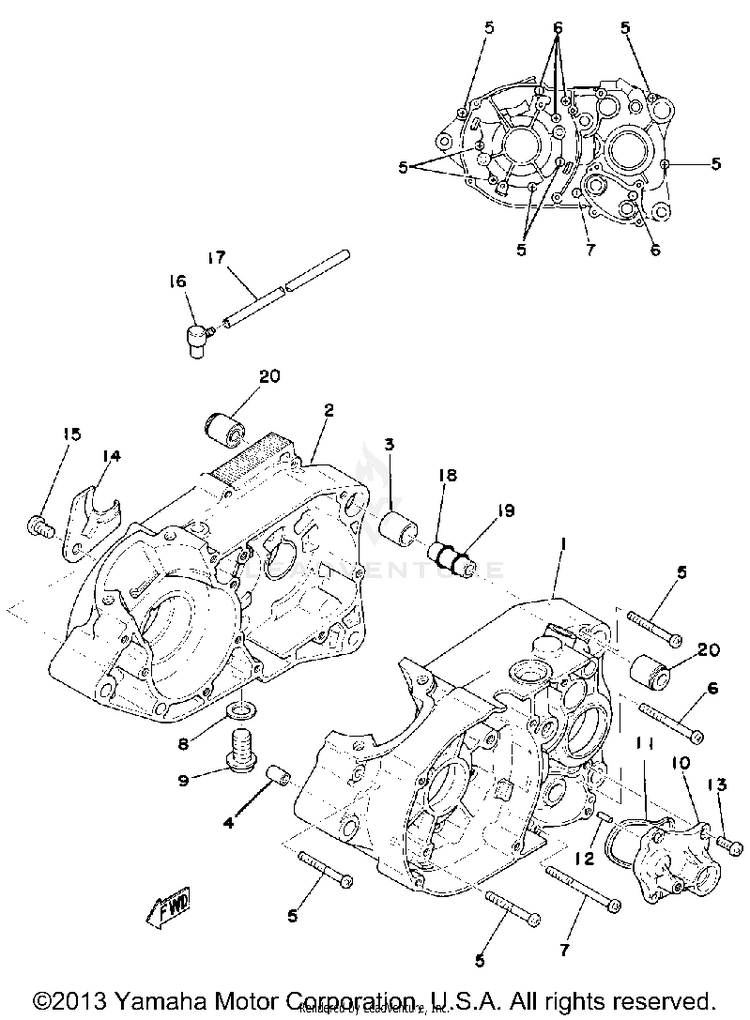

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1525-15111-01-00CRANKCASE 1$115.99$90.47Usually ships in 7-10 business days
2525-15121-00-00CRANKCASE 2$70.26$54.80Usually ships in 7-10 business days
399530-20020-00

(replaces part #
99510-20020-00)

PIN, DOWEL$2.55$2.30Not Shipping
499530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
598580-06545-00SCREW, PAN HEAD (92503-06045-00$6.49$5.4910+ In-Stock
698580-06555-00

(replaces part #
98580-06055-00)

SCREW,PANHEAD$5.99$4.672 In-Stock
798580-06565-00SCREW, PAN HEAD$10.49$8.188 In-Stock
890430-12207-00GASKET$8.49$6.6210+ In-Stock
990340-12005-00PLUG, STRAIGHT SCREW$9.49$7.406 In-Stock
10437-15419-01-00COVER, SHIFTER 1$89.99$70.19Usually ships in 7-10 business days
11401-15449-00-00RING, RUBBER$32.99$25.732 In-Stock
1293603-12007-00PIN, DOWEL$2.75$2.362 In-Stock
1398507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
14304-15128-00-00HOLDER$7.49$6.74Usually ships in 7-10 business days
1598580-08012-00

(replaces part #
98501-08012-00)

SCREW, PAN HEAD (9806-08012)$8.49$7.64Not Shipping
16583-15371-00-00BREATHER$7.49$5.8410+ In-Stock
1790445-07MF1-00

(replaces part #
90445-07177-00)

HOSE$8.49$7.64Usually ships in 7-10 business days
18401-15317-00-00SPACER, ENGINE MOUNT$15.49$12.70Usually ships in 7-10 business days
1993210-11073-00O-RING$8.49$6.6210+ In-Stock
2090388-08003-00

(replaces part #
328-15316-00-00)

Damper$19.49$15.206 In-Stock
