1976 Yamaha TY175 Intake OEM Parts Diagram

Submodel TY175C - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

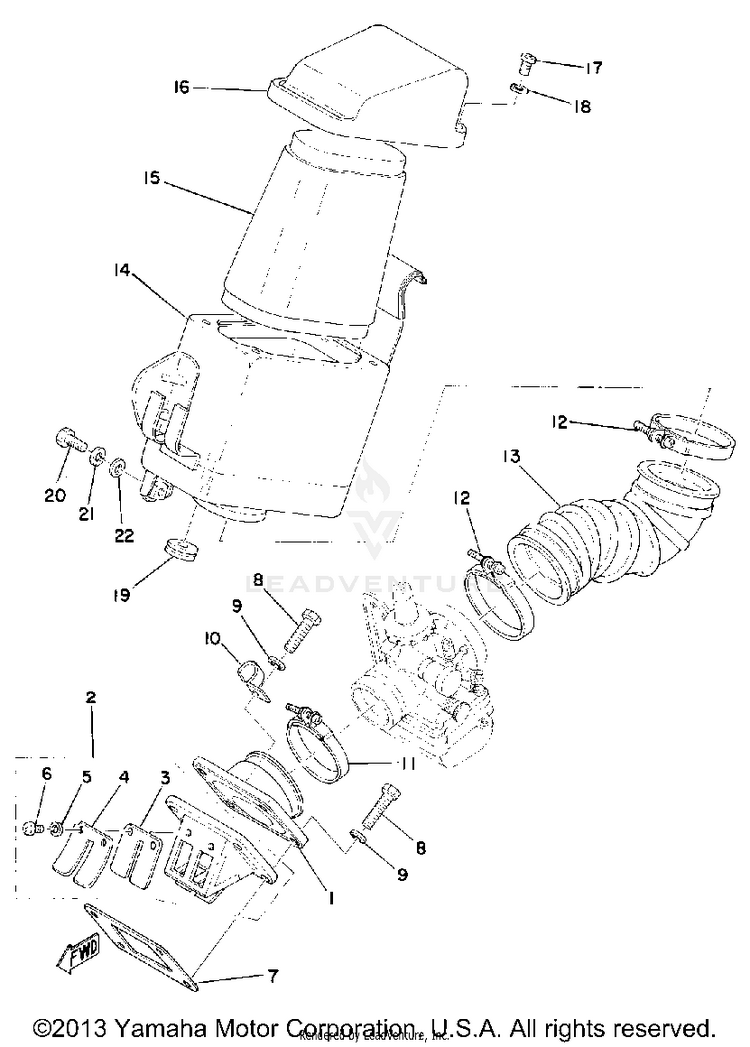

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1525-13565-01-00JOINT, CARBURETOR$18.49$15.16Not Shipping
253V-13610-00-00

(replaces part #
314-13610-01-00)

REED VALVE ASSEMBLY$186.99$145.85Usually ships in 7-10 business days
3314-13613-01-00REED, VALVE$42.99$33.534 In-Stock
410X-13616-00-00

(replaces part #
314-13616-01-00)

STOPPER, REED VALVE$14.99$12.29Not Shipping
592990-03100-00WASHER, SPRING$9.49$7.4010+ In-Stock
698580-03008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
787A-13621-00-00GASKET, VALVE SEAT$9.49$7.409 In-Stock
897017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1090462-05005-00CLAMP$10.49$8.183 In-Stock
1190460-43179-00

(replaces part #
90460-43053-00)

CLAMP, HOSE$21.99$17.1510+ In-Stock
1290460-49058-00CLAMP, HOSE$8.49$6.6710+ In-Stock
13525-14453-00-00JOINT, AIR CLNR 1$52.99$41.33Not Shipping
14525-14411-00-00CASE, AIR CLEANER 1$29.94$24.55Usually ships in 7-10 business days
15525-14451-02-00

(replaces part #
525-14451-01-00)

ELEMENT, AIR CLEANER$18.49$14.426 In-Stock
16525-14412-01-00CAP, CLEANER CASE 1$6.86$6.17Not Shipping
1798580-04008-00SCREW, PAN HEAD$6.49$5.0610+ In-Stock
1892990-04200-00WASHER, PLAIN$2.00$1.7210+ In-Stock
1990480-10091-00GROMMET (214-21746-00)$9.49$7.403 In-Stock
2097D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
2192995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
2290201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
