1976 Yamaha TY175 Cylinder Head - Cylinder OEM Parts Diagram

Submodel TY175C - 1976

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

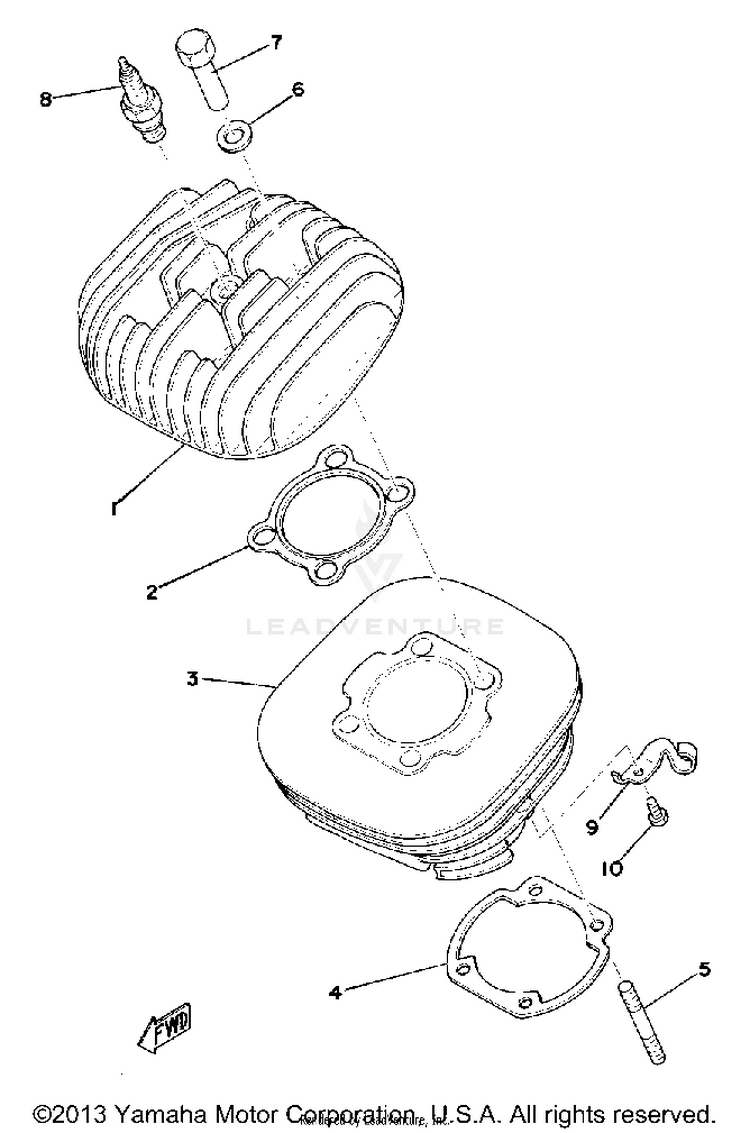

CYLINDER HEAD - CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1525-11111-00-00HEAD, CYLINDER 1$36.71$30.10Not Shipping
2251-11181-00-00GASKET, CYLINDER HEAD 1$25.99$20.2710+ In-Stock
3525-11311-00-00CYLINDER 1$139.99$109.19Not Shipping
41WE-11351-00-00

(replaces part #
248-11351-00-00)

GASKET, CYLINDER$32.99$25.7310+ In-Stock
590116-08064-00BOLT, STUD$8.49$6.6210+ In-Stock
690201-12362-00WASHER, PLATE$10.49$8.1810+ In-Stock
790179-08303-00NUT$10.49$8.188 In-Stock
8B7E-S0000-00-00

(replaces part #
NGK-B7ES0-00-00)

B7ES NGK SPLUG 4PK$3.05$2.62Not Shipping
9525-15441-01-00HOLDER, CLUTCH CABLE$7.99$7.19Not Shipping
1097013-06012-00BOLT$6.49$5.0610+ In-Stock

Get additional RM Cash on OEM purchases!

Select parts to add, then click
