1978 Yamaha LB80 Clutch OEM Parts Diagram

Submodel LB802AE - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH

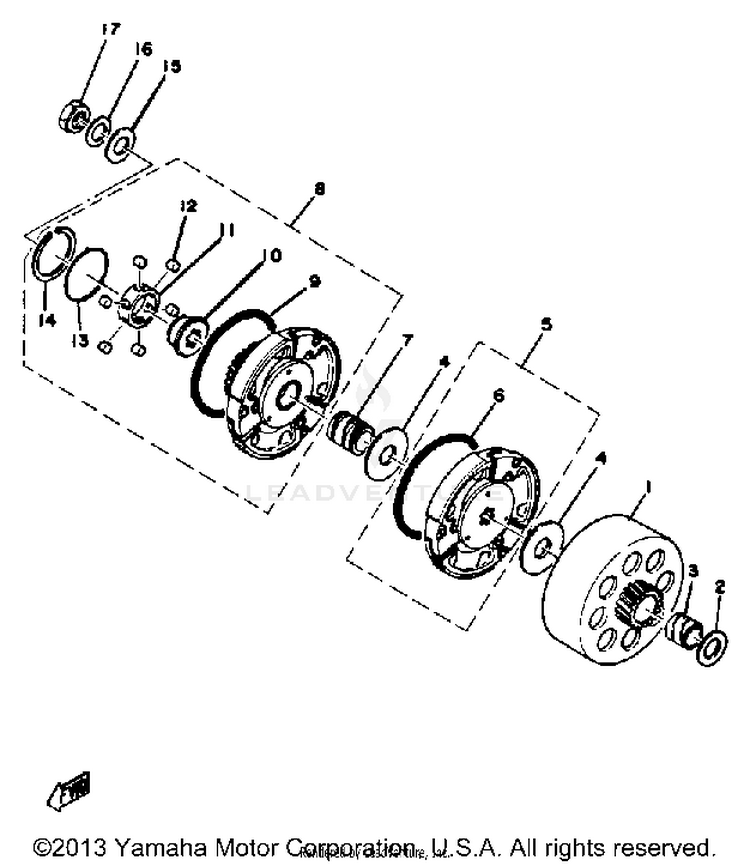

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-90506-12139-00SPRING, TENSION$2.37$2.13Usually ships in 7-10 business days
-384-16630-02-00CLUTCH CARRIER ASSEMBLY$127.99$99.83Usually ships in 7-10 business days
1384-16110-00-00PRI DRV GEAR ASSEMBLY$61.68$48.11Usually ships in 7-10 business days
290201-16383-00WASHER, PLATE$9.49$7.405 In-Stock
390560-15119-00SPACER$6.49$5.84Usually ships in 7-10 business days
490201-16250-00WASHER, PLATE$3.85$3.46Usually ships in 7-10 business days
5384-16620-02-00CLUTCH CARRIER ASSEMBLY$107.99$84.23Usually ships in 7-10 business days
690506-12025-00SPRING, TENSION$3.20$2.88Usually ships in 7-10 business days
790560-15120-00SPACER$4.16$3.74Usually ships in 7-10 business days
8439-16630-00-00CLUTCH CARRIER ASSEMBLY$247.99$193.43Usually ships in 7-10 business days
990506-12025-00SPRING, TENSION$3.20$2.88Usually ships in 7-10 business days
10296-16512-00-00BOSS, CLUTCH HSNG$30.99$25.41Usually ships in 7-10 business days
11384-16586-01-00CAGE$5.44$4.90Usually ships in 7-10 business days
1293606-06091-00PIN, DOWEL$3.20$2.88Usually ships in 7-10 business days
1390508-10739-00

(replaces part #
90508-10225-00)

SPRING TORSION 2J$4.10$3.69Usually ships in 7-10 business days
1493450-41030-00CIRCLIP, INNER$2.10$1.89Usually ships in 7-10 business days
1590201-133P2-00

(replaces part #
90201-13409-00)

WASHER, PLATE$9.49$8.54Usually ships in 7-10 business days
1690208-13016-00WASHER, CONICAL SPR (384-16119-$5.99$5.39Usually ships in 7-10 business days
1790179-13073-00NUT, SPEC''L SHAPE$7.49$6.74Usually ships in 7-10 business days
