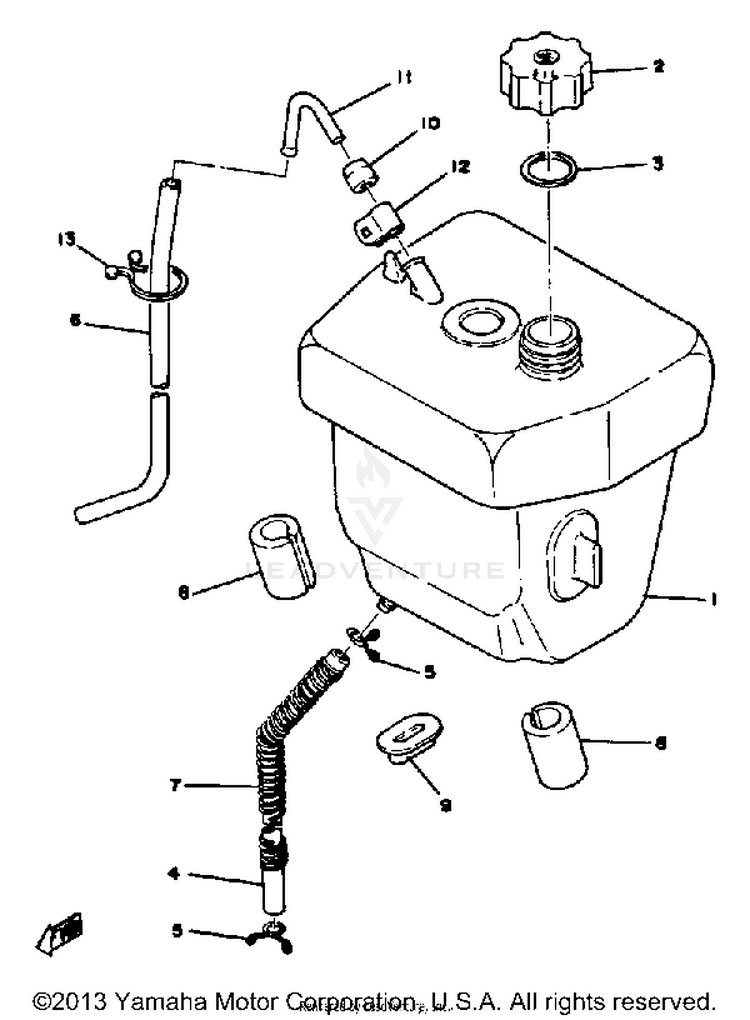

OIL TANK

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-91A30-05080-00

(replaces part #
90446-09232-00)

TUBE, FLEXIBLE VINYL$20.99$17.21Usually ships in 7-10 business days
-561-20000-10-00SPRING$3.57$3.21Usually ships in 7-10 business days
-99999-01099-00OIL TANK ASSEMBLY$57.99$45.23Usually ships in 7-10 business days
-4F4-21751-01-00TANK, OIL$65.99$51.47Usually ships in 7-10 business days
152W-21770-00-00OIL TANK CAP ASSY.$29.99$24.59Usually ships in 7-10 business days
2296-21771-62-00BODY, CAP$27.99$22.95Not Shipping
3296-21772-00-00GASKET, CAP$2.45$2.20Not Shipping
45RB-24315-00-00

(replaces part #
90445-09252-00)

PIPE 5$8.49$6.6210+ In-Stock
590467-08003-00CLIP, SCISSOR$11.49$8.9610+ In-Stock
690445-083J5-00

(replaces part #
90445-09282-00)

HOSE (L460)$11.49$8.9610+ In-Stock
790504-06020-00SPRING, COMPRESSION$5.99$5.39Usually ships in 7-10 business days
8439-24181-00-00DAMPER, LOCATING 1$11.49$9.42Not Shipping
9439-21778-01-00DAMPER, LOCATING 1$9.99$8.99Not Shipping
10439-21759-01-00GROMMET, GAUGE$3.85$3.46Usually ships in 7-10 business days
11561-24119-00-00TUBE, CONNECTING$1.18$1.06Usually ships in 7-10 business days
12561-21755-00-00CLAMP, DAMPER$1.59$1.43Usually ships in 7-10 business days
1390464-25267-00

(replaces part #
90464-23041-00)

CLAMP$8.49$6.624 In-Stock
