1978 Yamaha LB80 Intake Lb80iiad OEM Parts Diagram

Submodel LB802AE - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE LB80IIAD

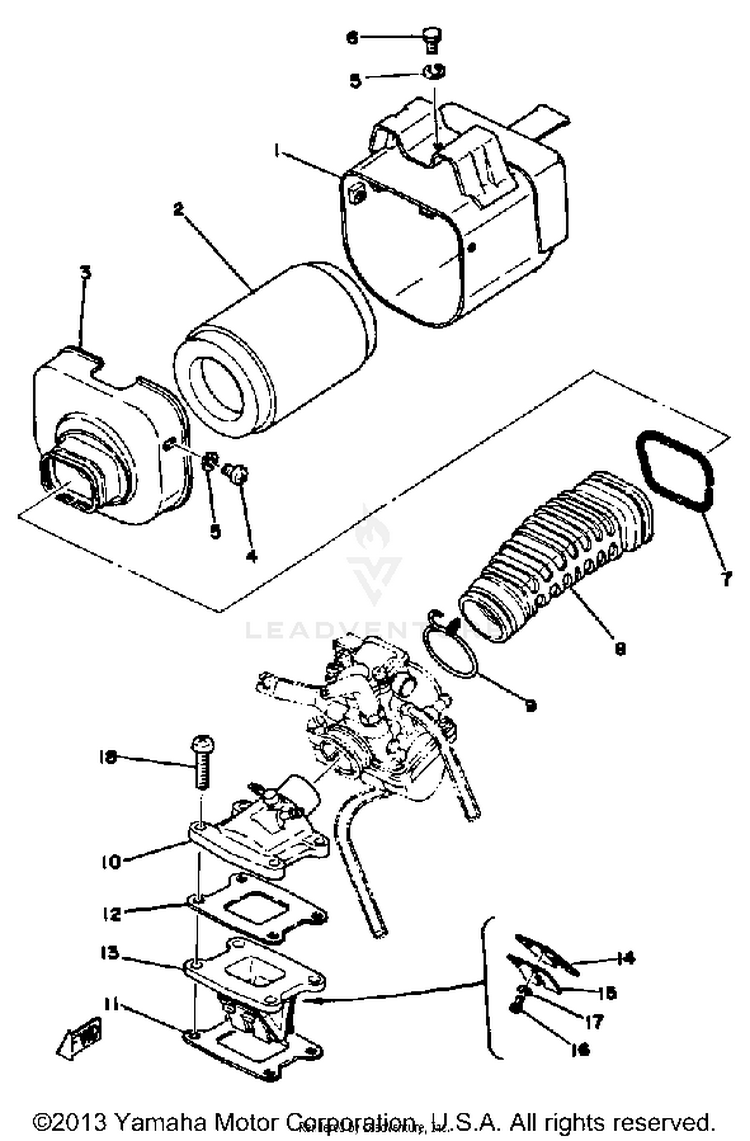

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11F5-14411-01-00CASE, AIR CLEANER 1$15.04$12.33Usually ships in 7-10 business days
21V8-14451-01-00

(replaces part #
1V8-14451-00-00)

ELEMENT,AIR CLNR$10.49$8.182 In-Stock
31V8-W1441-01-00CASE, AIR CLNR 1$36.99$30.33Usually ships in 7-10 business days
497885-06008-00

(replaces part #
98580-06008-00)

SCREW, PAN HEAD$1.20$1.032 In-Stock
592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
697017-06010-00

(replaces part #
97011-06010-00)

BOLT(3JP)$4.05$3.4810+ In-Stock
790506-06075-00SPRING, TENSION$9.49$7.401 In-Stock
8439-14453-01-00JOINT, AIR CLNR 1$38.99$31.97Usually ships in 7-10 business days
990467-20023-00CLIP$6.49$5.0610+ In-Stock
101F5-13565-00-00JOINT, CARBURETOR$18.49$15.16Not Shipping
111F5-13621-02-00

(replaces part #
1F5-13621-01-00)

GASKET,VALVE SEAT$4.00$3.60Not Shipping
121F5-13622-02-00

(replaces part #
1F5-13622-01-00)

GASKET,VALVE SEAT$6.99$6.29Usually ships in 7-10 business days
131F5-13610-00-00REED VALVE ASSEMBLY$23.94$19.63Usually ships in 7-10 business days
14314-13613-01-00REED, VALVE$42.99$33.534 In-Stock
1510X-13616-00-00

(replaces part #
314-13616-01-00)

STOPPER, REED VALVE$14.99$12.29Not Shipping
1698580-03008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
1792990-03100-00WASHER, SPRING$9.49$7.4010+ In-Stock
1898517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
