1978 Yamaha XS1100 Exhaust OEM Parts Diagram

Submodel XS1100E - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

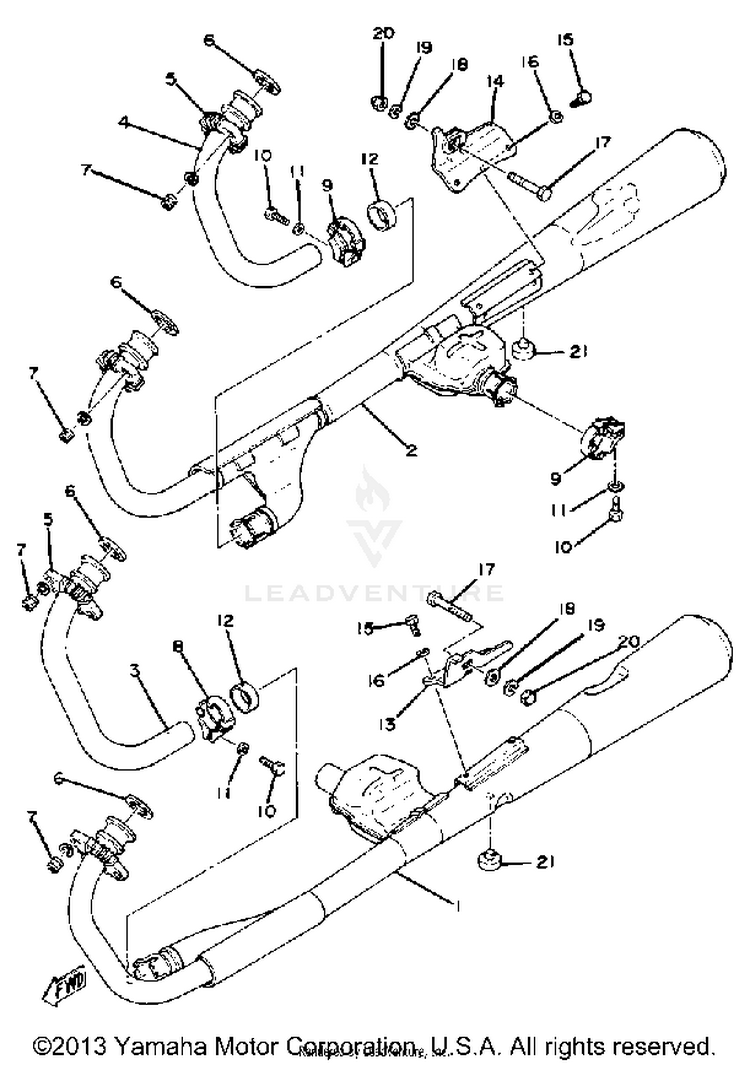

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-2H7-14631-02-00PIPE, EXHAUST 3$97.99$76.43Usually ships in 7-10 business days
-2H7-14621-02-00PIPE, EXHAUST R$111.99$87.35Usually ships in 7-10 business days
-2H7-W1471-80-00MUFFLER 1$641.99$500.75Usually ships in 7-10 business days
-99999-01052-00MUFFLER 2H7 RH$428.99$334.61Usually ships in 7-10 business days
-99999-01050-00PIPE, EXHAUST 3 2H7 (2H7-14631-$103.99$81.11Usually ships in 7-10 business days
-99999-01048-00PIPE, EXHAUST 2 2H7 (2H7-14621-$117.99$92.03Usually ships in 7-10 business days
-99999-01051-00MUFFLER 2H7 LH (2H7-14710-00)$574.99$448.49Usually ships in 7-10 business days
195617-08615-00

(replaces part #
95621-08615-00)

BOLT, STUD$6.49$5.062 In-Stock
295617-08615-00

(replaces part #
95621-08615-00)

BOLT, STUD$6.49$5.062 In-Stock
395617-08615-00

(replaces part #
95621-08615-00)

BOLT, STUD$6.49$5.062 In-Stock
495617-08615-00

(replaces part #
95621-08615-00)

BOLT, STUD$6.49$5.062 In-Stock
52H7-14612-00-00NUT, RING$30.48$24.99Usually ships in 7-10 business days
64BE-14613-00-00GASKET, EXHAUST PIPE$10.99$8.5710+ In-Stock
790179-08004-00NUT$10.49$8.186 In-Stock
826H-14797-00-00BAND, silence 4$21.99$18.03Not Shipping
926H-14796-00-00BAND, silencer 4$21.99$18.03Not Shipping
1097013-08025-00BOLT, KICK CRANK$9.49$7.406 In-Stock
1192990-08600-00

(replaces part #
92901-08600-00)

WASHER, PLATE$2.80$2.7610+ In-Stock
123JJ-14653-00-00

(replaces part #
1L9-14714-01-00)

GASKET, EXHAUST 4$46.99$38.53Usually ships in 7-10 business days
132H7-14771-00-00STAY, MUFFLER 1$11.99$9.83Usually ships in 7-10 business days
142H7-14781-00-00STAY, MUFFLER 2$11.99$9.83Usually ships in 7-10 business days
1597013-08016-00

(replaces part #
97313-08016-00)

BOLT-$1.7810+ In-Stock
1692990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
1790101-10568-00BOLT$6.49$5.068 In-Stock
1890201-10669-00WASHER, PLATE$9.49$7.404 In-Stock
1992990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
2090176-10009-00NUT, CAP$8.49$7.64Usually ships in 7-10 business days
21371-27114-00-00STOPPER, MAIN STAND$8.49$6.6210+ In-Stock
