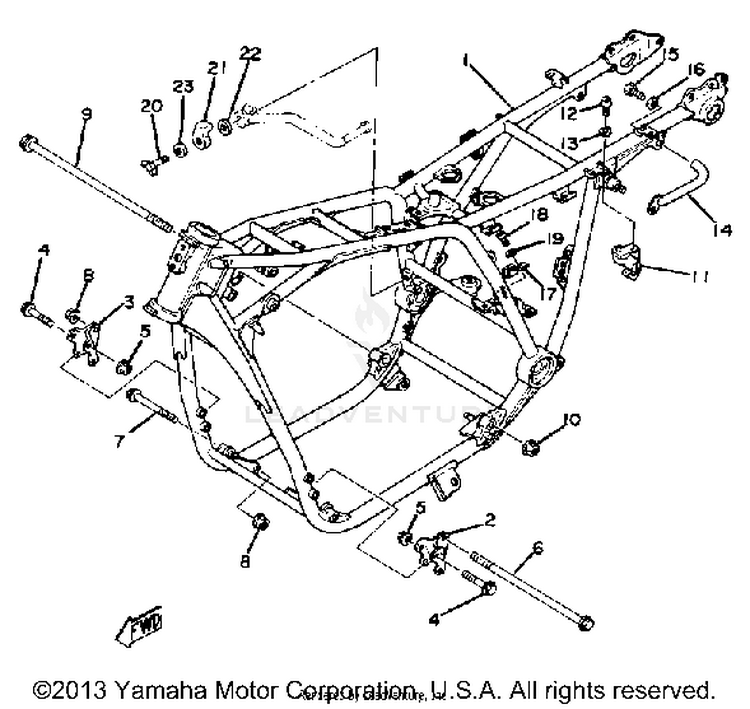

1978 Yamaha XS1100 Frame OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	2H7-21110-01-33	FRAME \| YAMAHA BLACK	$571.99	$448.40	Usually ships in 7-10 business days
2	2H7-21315-00-00	STAY, ENGINE 2	$10.70	$8.77	Usually ships in 7-10 business days
3	2H7-21316-00-00	STAY, ENGINE 3	$5.44	$4.90	Usually ships in 7-10 business days
4	90105-08107-00	BOLT, WASHER BASED \| M8-60L	$4.40	$3.96	Not Shipping
5	90179-08491-00 (replaces part # 90179-08246-00)	NUT	$2.80	$2.41	10+ In-Stock
6	90105-10056-00	BOLT, WASHER BASED \| M10-295L	$20.99	$17.21	Usually ships in 7-10 business days
7	90105-10105-00	BOLT, FLANGE \| M10-110L	$13.49	$10.52	4 In-Stock
8	90179-10658-00 (replaces part # 90179-10247-00)	NUT	$10.49	$8.18	10+ In-Stock
9	90105-12047-00 (replaces part # 90105-12106-00)	BOLT, FLANGE \| M12-365L	$28.99	$23.77	Usually ships in 7-10 business days
10	90179-12657-00 (replaces part # 90179-12421-00)	NUT	$6.49	$5.06	10+ In-Stock
11	2H7-21308-00-00	HELMET HANGER ASSEMBLY	$52.99	$41.33	Usually ships in 7-10 business days
12	97885-06012-00 (replaces part # 98580-06012-00)	SCREW, PAN HEAD	$3.45	$2.97	10+ In-Stock
13	92995-06100-00	WASHER, SPRING	$3.55	$3.05	10+ In-Stock
14	2H7-21165-00-00	HANDLE, STANDING	$11.24	$9.22	Usually ships in 7-10 business days
15	97013-08016-00 (replaces part # 97313-08016-00)	BOLT	-	$1.78	10+ In-Stock
16	92990-08100-00	WASHER, SPRING	$5.60	$4.37	10+ In-Stock
17	2H7-2139V-00-00	HOOK	$3.16	$2.84	Usually ships in 7-10 business days
18	97885-06012-00 (replaces part # 98580-06012-00)	SCREW, PAN HEAD	$3.45	$2.97	10+ In-Stock
19	92995-06100-00	WASHER, SPRING	$3.55	$3.05	10+ In-Stock
20	90122-06007-00	BOLT, WING	$5.49	$4.94	Usually ships in 7-10 business days
21	2H7-2139W-00-00	COVER	$6.44	$5.80	Usually ships in 7-10 business days
22	2H7-2139X-00-00	DAMPER	$2.17	$1.95	Usually ships in 7-10 business days
23	90201-063J2-00	WASHER, PLATE	$6.49	$5.06	10+ In-Stock
