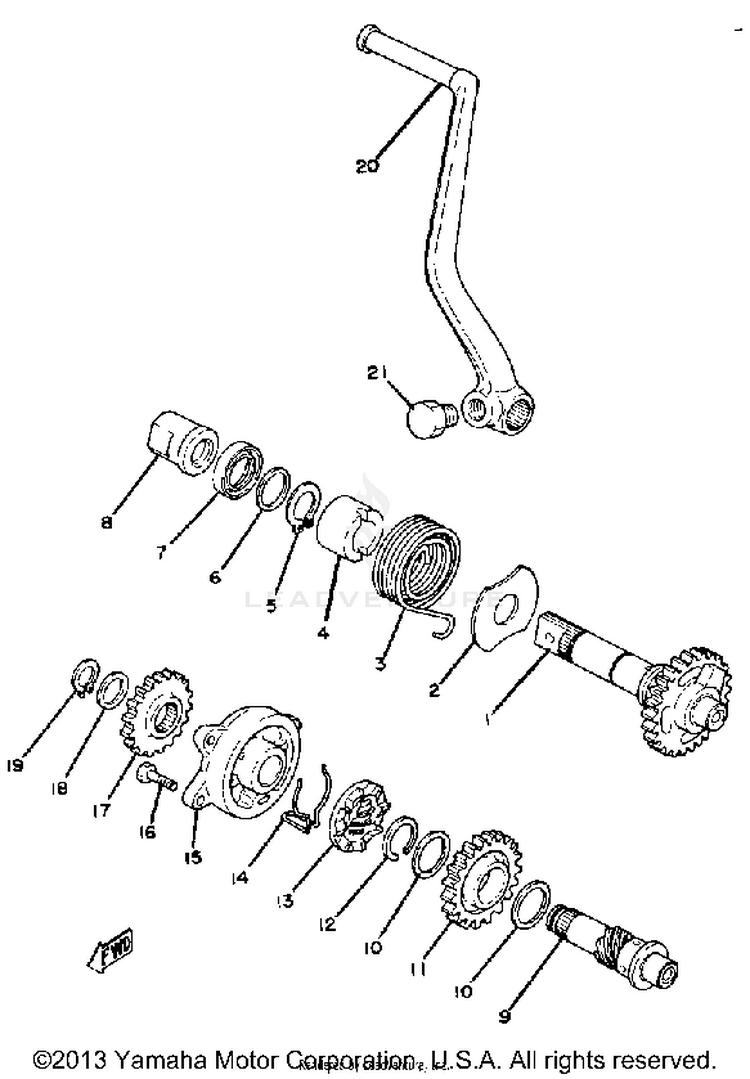

1978 Yamaha XS1100 Kick Starter OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	2H7-15660-00-00	KICK AXLE ASSEMBLY	$44.88	$36.80	Usually ships in 7-10 business days
2	278-15676-00-00	COVER, SPRING	$5.99	$5.39	Usually ships in 7-10 business days
3	90508-30051-00	SPRING, TORSION	$17.49	$13.64	3 In-Stock
4	371-15666-00-00	SPACER	$9.40	$8.46	Usually ships in 7-10 business days
5	99009-20400-00	CIRCLIP	$9.49	$7.40	10+ In-Stock
6	90201-20266-00	WASHER, PLATE (T=1.0)	$10.49	$8.18	6 In-Stock
7	93102-20108-00	OIL SEAL	$12.49	$9.74	10+ In-Stock
8	2H7-15662-01-00	COVER, KICK AXLE	$6.68	$6.01	Usually ships in 7-10 business days
9	2H7-W1565-00-00	KICK-SHAFT CMPLT 2	$18.99	$15.57	Usually ships in 7-10 business days
10	90201-253K0-00	WASHER, PLATE (T=1.0)	$9.49	$7.40	10+ In-Stock
11	2H7-15515-00-00	GEAR 3	$17.60	$14.43	Usually ships in 7-10 business days
12	93440-25084-00	CIRCLIP	$4.45	$4.12	10+ In-Stock
13	2H7-15671-00-00	WHEEL, RATCHET	$12.52	$10.27	Usually ships in 7-10 business days
14	371-15687-00-00	CLIP	$2.17	$1.95	Usually ships in 7-10 business days
15	2H7-15654-00-00	HOLDER, KICK GEAR	$23.94	$19.63	Usually ships in 7-10 business days
16	97017-06020-00 (replaces part # 97011-06020-00)	BOLT	$4.06	$3.49	10+ In-Stock
17	2H7-15514-00-00	GEAR 2	$12.72	$10.43	Usually ships in 7-10 business days
18	150-17417-00-10	SHIM 1	$3.25	$2.92	Usually ships in 7-10 business days
19	93410-17037-00	CIRCLIP	$9.49	$7.40	4 In-Stock
20	2H7-15611-00-00	CRANK, KICK	$53.99	$42.11	Usually ships in 7-10 business days
21	2H7-15623-00-00	BOLT, KICK CRANK	$6.86	$6.17	Usually ships in 7-10 business days
