1978 Yamaha XT500 Crankcase Cover OEM Parts Diagram

Submodel XT500E_205 - 1978

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

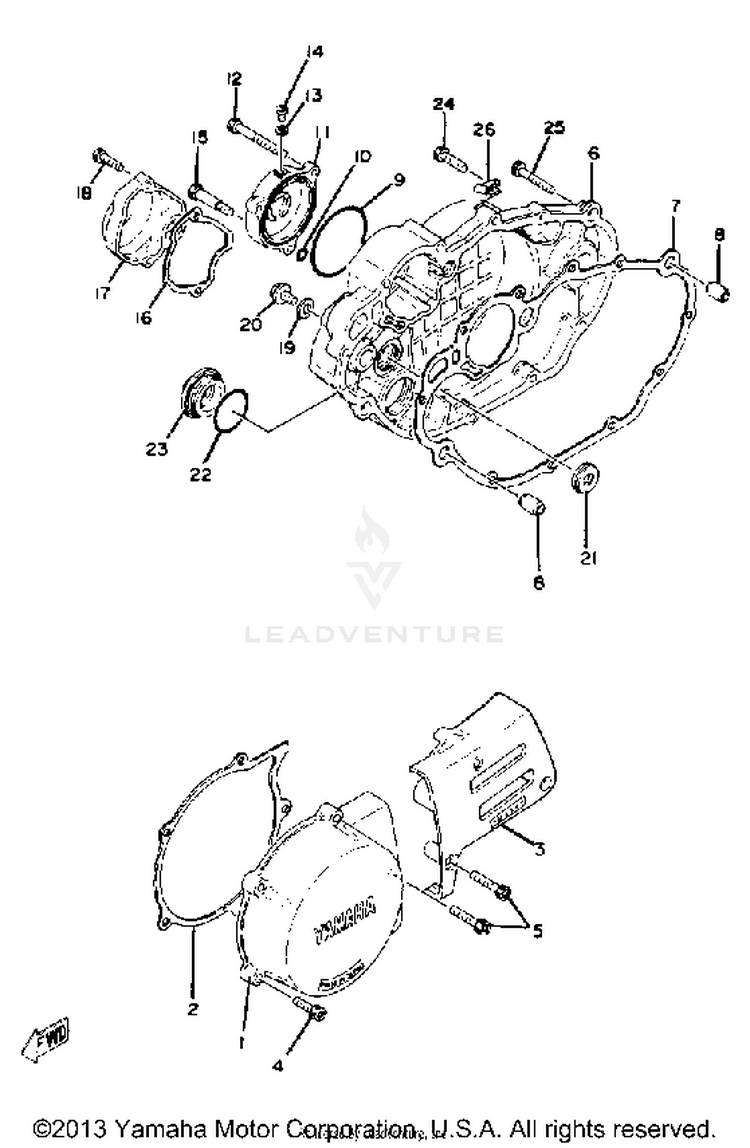

CRANKCASE COVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-583-W1542-00-00COVER, CRANKCASE 3 (583-15431-0$369.99$288.59Usually ships in 7-10 business days
1583-15411-00-00COVER, CRANKCASE L$148.99$116.21Usually ships in 7-10 business days
23HT-15451-00-00GASKET, CRCS COVER$26.99$21.055 In-Stock
3583-15421-00-00COVER, CRANKCASE R$108.99$90.44Not Shipping
491317-06025-00

(replaces part #
91316-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
591317-06035-00

(replaces part #
91316-06035-00)

BOLT, HEX. SOCKET HEAD$3.90$3.356 In-Stock
73HT-15462-R1-00

(replaces part #
3HT-15462-00-00)

CRANKCASE COVER 3 GASKET$24.99$19.491 In-Stock
899530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
993210-64297-00O-RING$8.99$7.3510+ In-Stock
1093210-07438-00O-RING$9.49$7.404 In-Stock
11583-13447-01-00COVER, OIL ELEMENT$32.99$27.05Usually ships in 7-10 business days
1291317-06060-00

(replaces part #
91316-06060-00)

BOLT$4.05$3.4810+ In-Stock
1390430-05126-00GASKET$7.49$5.84Not Shipping
1490149-05110-00SCREW$10.49$8.604 In-Stock
1590109-06419-00BOLT$9.49$7.4010+ In-Stock
163HT-15457-00-00

(replaces part #
583-15457-00-00)

GASKET$30.99$24.172 In-Stock
17583-15417-00-00COVER, CAP$35.99$29.51Not Shipping
1891317-06025-00

(replaces part #
91316-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
1990430-10171-00BOLT, UNION$3.45$2.9710+ In-Stock
2090340-10003-00PLUG, STRAIGHT SCREW$9.49$7.404 In-Stock
2193101-14089-00OIL SEAL$13.49$10.524 In-Stock
2293210-34474-00O-RING$6.49$5.063 In-Stock
23583-15425-00-00COVER, GENERATOR R$28.99$23.77Not Shipping
2490110-06138-00BOLT$6.49$5.0610+ In-Stock
2591317-06040-00

(replaces part #
91316-06040-00)

BOLT, HEX. SOCKET HEAD$4.05$3.4810+ In-Stock
2690465-08076-00CLAMP$9.49$8.54Not Shipping
