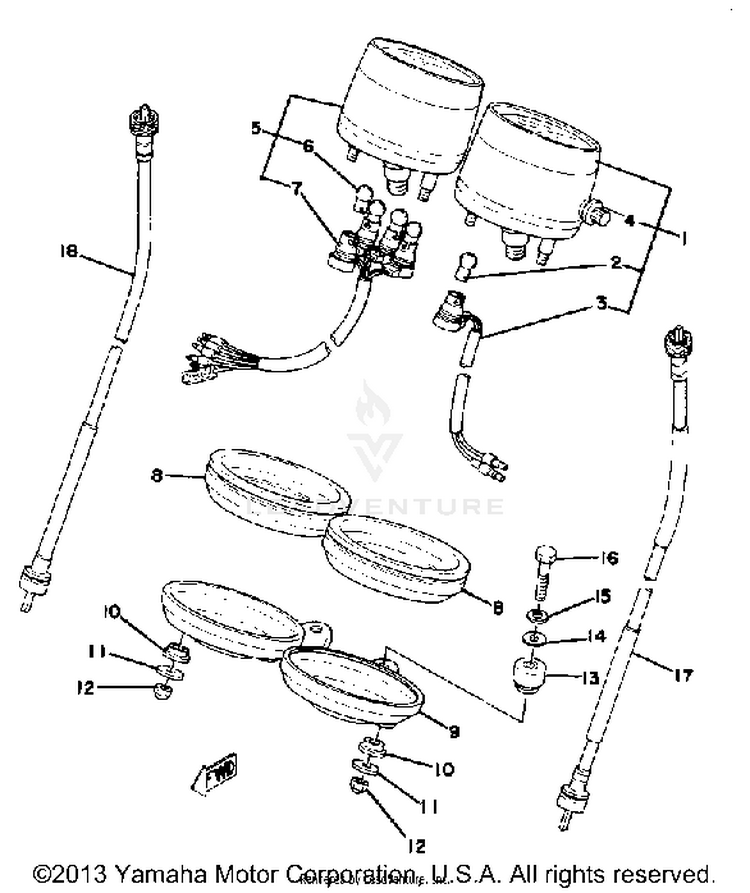

SPEEDOMETER - TACHOMETER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11E6-83570-61-00SPEEDOMETER ASSEMBLY (1E6-83570 | MILE/H$150.99$117.77Not Shipping
2122-83516-10-XX

(replaces part #
122-83516-10-00)

BULB$2.40$2.16Usually ships in 7-10 business days
31E6-83536-60-00SOCKET, METER$6.66$5.99Usually ships in 7-10 business days
41E6-83578-60-00KNOB, TRIP METER$5.99$5.39Not Shipping
51E6-83540-F1-00TACHOMETER ASSEMBLY (1E6-83540-$126.99$99.05Not Shipping
6122-83561-10-0UNAVAILABLE IN PRICE BOOK$0.00$0.00Not Shipping
71E6-83520-60-00SOCKET CORD ASSEMBLY$15.90$13.04Usually ships in 7-10 business days
81E6-83523-60-00DAMPER$23.99$19.67Usually ships in 7-10 business days
91E6-83519-60-00BRACKET, METER$103.99$81.11Usually ships in 7-10 business days
101E6-83526-60-00DAMPER 2$12.99$10.65Usually ships in 7-10 business days
1190201-05032-00

(replaces part #
90201-052E2-00)

WASHER, PLATE$9.49$8.54Usually ships in 7-10 business days
1295303-05800-00NUT (CROWN)$1.30$1.17Not Shipping
131E6-23445-00-00DAMPER$5.49$4.94Usually ships in 7-10 business days
1490201-06049-00

(replaces part #
90201-062G3-00)

WASHER, PLATE$3.75$3.38Usually ships in 7-10 business days
1592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1697014-06035-00

(replaces part #
97013-06035-00)

BOLT, HEXAGON$2.65$2.288 In-Stock
171JN-83550-02-00

(replaces part #
1JN-83550-01-00)

SPEEDOMETER CABLE AS$45.99$35.875 In-Stock
181E6-83560-52-00TACHOMETER CABLE$55.99$43.67Usually ships in 7-10 business days
