1980 Yamaha IT425 Cylinder OEM Parts Diagram

Submodel IT425G - 1980

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER

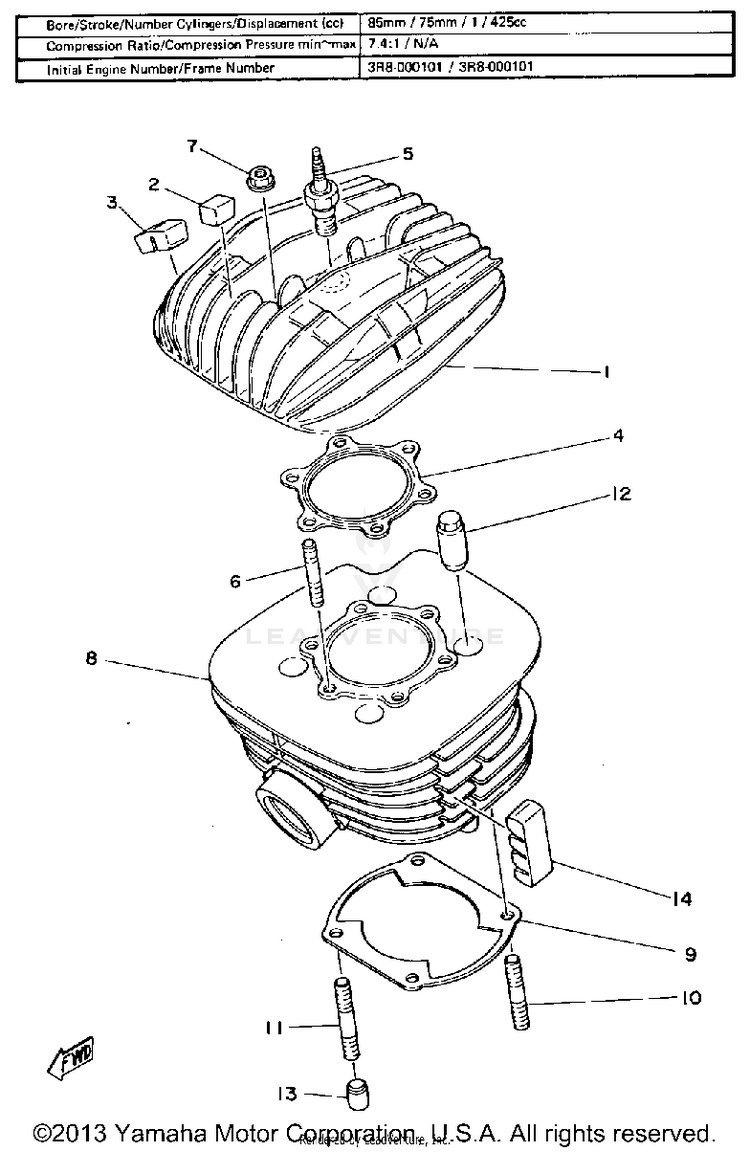

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-1W6-11161-00-00ABSORBER 1 | ALTERNATE PARTS$2.97$2.67Not Shipping
13R8-11111-00-00HEAD, CYLINDER 1$80.15$62.52Usually ships in 7-10 business days
2363-11161-00-00ABSORBER 1 (363-11161-00)$8.49$7.64Usually ships in 7-10 business days
31W2-11161-00-00ABSORBER 1$7.99$7.19Not Shipping
4500-11181-00-00GASKET, CYLINDER HEAD 1$82.99$64.732 In-Stock
5BR8-ES000-00-00

(replaces part #
NGK-B8ES0-00-00)

BR8ES NGK SCREW TOP$4.45$4.2410+ In-Stock
690116-08564-00

(replaces part #
90116-08321-00)

BOLT, STUD$11.49$8.969 In-Stock
790179-08491-00NUT$2.80$2.4110+ In-Stock
83R8-11311-00-00CYLINDER 1$317.99$272.28Usually ships in 7-10 business days
92X5-11351-01-00

(replaces part #
2X5-11351-00-00)

GASKET,CYLINDER$15.99$13.11Not Shipping
1090116-10263-00BOLT, STUD$12.49$10.24Usually ships in 7-10 business days
1190116-10258-00BOLT, STUD$4.17$3.75Not Shipping
1290179-10021-00

(replaces part #
90179-10201-00)

NUT$28.99$22.616 In-Stock
1399530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
142A6-11127-00-00

(replaces part #
2N6-11127-00-00)

ABSORBER 3$14.99$12.29Not Shipping
