1980 Yamaha IT425 Seat OEM Parts Diagram

Submodel IT425G - 1980

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

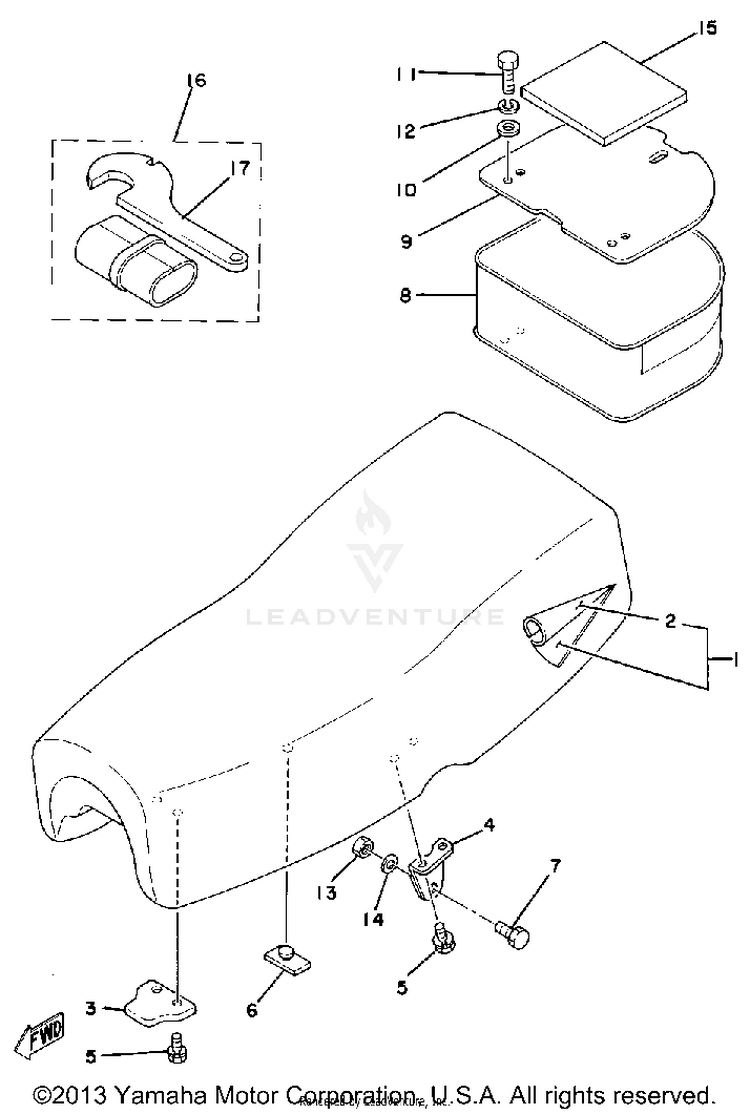

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12X7-W2473-00-00SEMI-DBL-SEAT ASSEMBLY$124.99$97.49Not Shipping
22K8-24771-00-00COVER, SM-DBL SEAT$90.99$70.97Not Shipping
31M1-24748-00-00BRACKET, SEAT$11.99$9.83Not Shipping
41W1-24738-00-00BRACKET, SEAT$11.99$9.83Not Shipping
590101-06304-00BOLT$8.49$6.624 In-Stock
6509-24724-00-00DAMPER, SEAT$11.99$9.353 In-Stock
797014-06035-00

(replaces part #
97013-06035-00)

BOLT, HEXAGON$2.65$2.288 In-Stock
81W2-24850-01-00CARRIER BOX ASSEMBLY$134.99$105.29Not Shipping
91W2-24833-01-00BRACKET, CARRIER 2$21.99$18.03Usually ships in 7-10 business days
1090201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
1197017-06020-00

(replaces part #
97001-06018-00)

BOLT$4.06$3.4910+ In-Stock
1292995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1395617-06100-00

(replaces part #
95601-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1492990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
151W2-24854-00-00DAMPER$3.57$3.21Not Shipping
161W2-W2810-00-00TOOL KIT$73.99$57.71Not Shipping
1710V-28135-00-00SPANNER, SPECIAL$41.99$34.43Not Shipping
