1980 Yamaha IT425 Shift Shaft - Pedal OEM Parts Diagram

Submodel IT425G - 1980

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT SHAFT - PEDAL

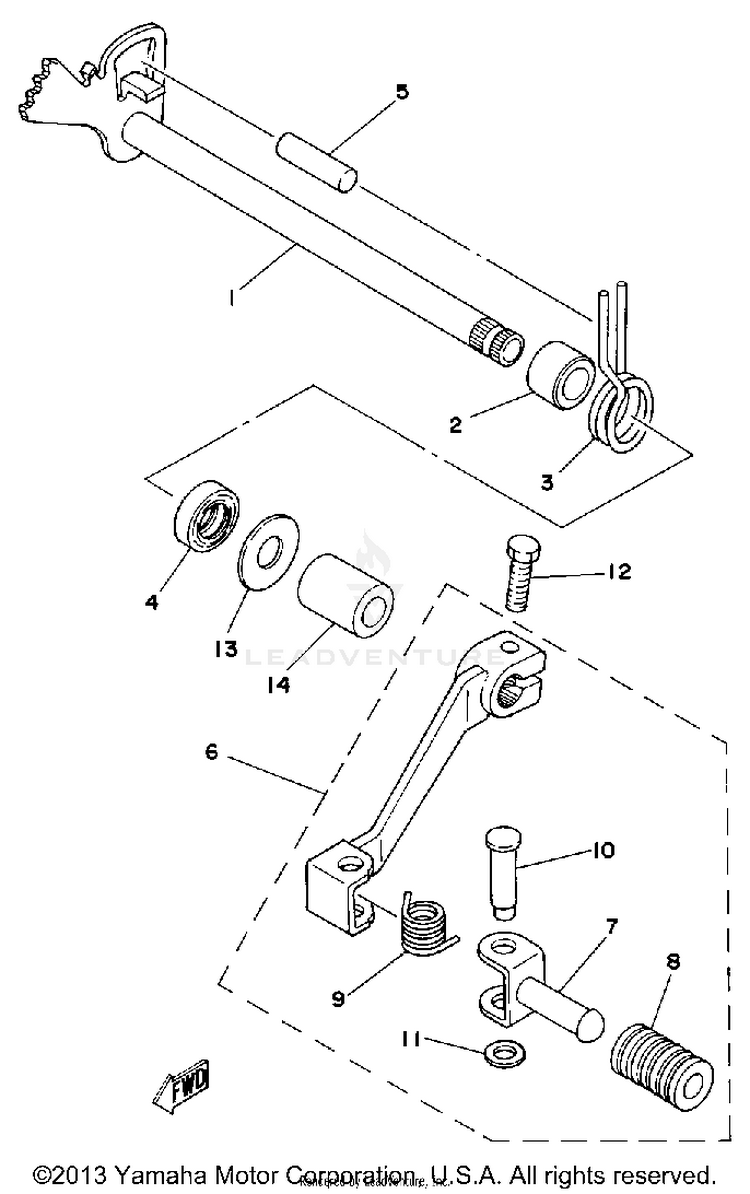

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12K7-18101-00-00SHIFT SHAFT ASSEMBLY.1$48.99$40.17Not Shipping
290560-12171-00SPACER$6.49$5.06Not Shipping
390508-32374-00SPRING, TORSION$8.49$6.6210+ In-Stock
493102-12321-00OIL SEAL (SD 12-22-5 HS)$13.49$10.5210+ In-Stock
593608-30152-00PIN, DOWEL$3.50$3.15Not Shipping
62HF-18110-02-00

(replaces part #
2HF-18110-01-00)

SHIFT PEDAL ASSY$58.99$46.015 In-Stock
73R8-18162-00-00PEDAL, SHIFT$9.99$8.99Not Shipping
81W6-18113-00-00COVER, SHIFT PEDAL$5.99$4.676 In-Stock
990508-20415-00SPRING, TORSION$2.45$2.20Not Shipping
1090243-08019-00PIN (90243-08017)$4.15$3.74Not Shipping
1190201-06042-00WASHER, PLATE$10.49$8.185 In-Stock
1297017-06020-00

(replaces part #
97011-06020-00)

BOLT$4.06$3.4910+ In-Stock
1390201-12588-00WASHER, PLATE$8.49$6.624 In-Stock
1490560-12191-00SPACER$8.49$6.624 In-Stock
