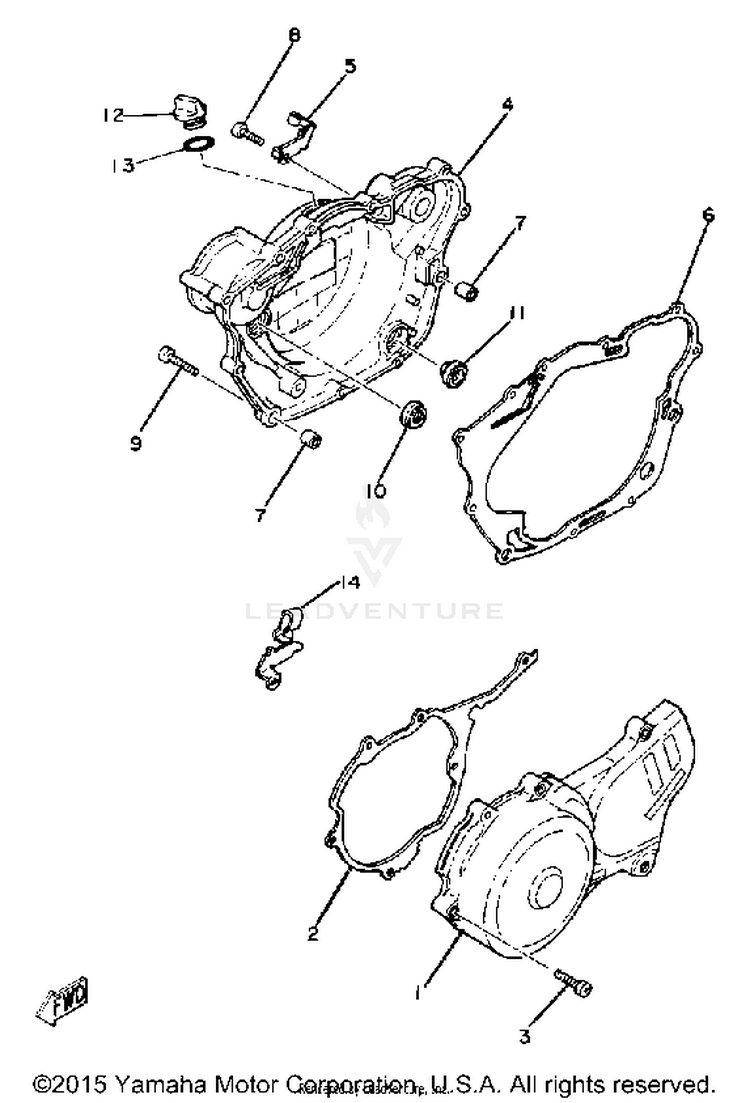

CRANKCASE COVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13Y1-15411-01-00COVER, CRANKCASE L$167.99$131.03Usually ships in 7-10 business days
23Y1-15451-10-00

(replaces part #
3Y1-15451-01-00)

GASKET, CRCS COVER$24.99$19.494 In-Stock
398517-06030-00

(replaces part #
98516-06030-00)

SCREW, PAN HEAD$3.45$2.97
499999-01396-00COVER, CRANKCASE R$134.99$105.29Not Shipping
53Y1-15378-01-00HOLDER$17.49$14.34Usually ships in 7-10 business days
63Y1-15461-10-00

(replaces part #
3Y1-15461-00-00)

GASKET, CRCS COV 2$27.99$21.835 In-Stock
799530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
898517-06025-00

(replaces part #
98506-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
998507-06035-00

(replaces part #
98506-06035-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1093101-14092-00OIL SEAL (S7-14-25-5.5-1-HS)$12.49$9.745 In-Stock
113Y1-15361-00-00GAUGE, LEVEL$33.99$26.5110+ In-Stock
123Y1-15363-10-00

(replaces part #
1RG-15363-00-00)

PLUG, OIL$19.99$15.5910+ In-Stock
1393210-19123-00O-RING$8.99$7.0110+ In-Stock
1490462-08062-00CLAMP$10.49$8.60Usually ships in 7-10 business days
