1981 Yamaha XT250 Speedometer OEM Parts Diagram

Submodel XT250H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SPEEDOMETER

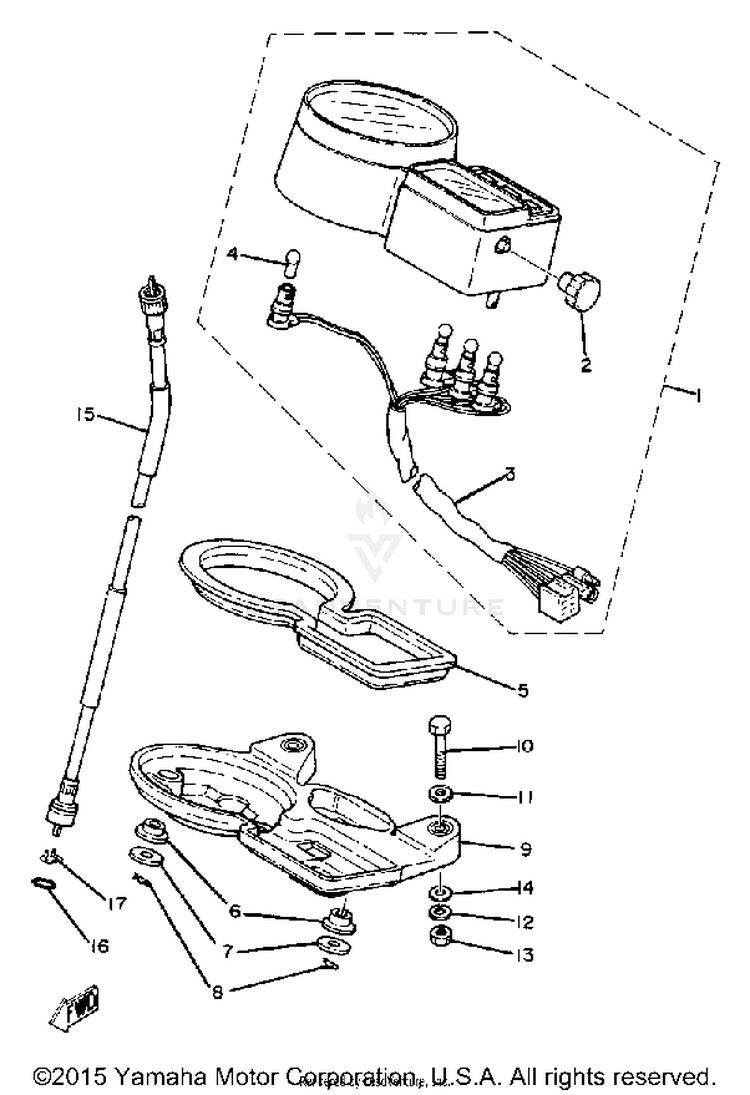

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13Y1-83570-A0-00SPEEDOMETER ASSEMBLY$141.99$110.75Not Shipping
23Y1-83578-00-00KNOB, TRIP METER$12.49$10.24Not Shipping
33Y1-83509-00-00SOCKET CORD ASSEMBLY$30.48$24.99Not Shipping
4122-83516-10-XX

(replaces part #
122-83516-10-00)

BULB$2.40$2.16Usually ships in 7-10 business days
53Y1-83513-00-00UNAVAILABLE IN PRICE BOOK$11.86$9.73Usually ships in 7-10 business days
61M1-83526-01-00

(replaces part #
1M1-83526-00-00)

DAMPER 2$5.99$4.678 In-Stock
790201-05033-00WASHER, SPECIAL$11.49$8.964 In-Stock
890468-10050-00CLIP$3.05$2.6210+ In-Stock
93Y1-83519-00-00BRACKET, METER$33.24$27.26Not Shipping
1097013-06045-00

(replaces part #
97313-06045-00)

BOLT$1.80$1.558 In-Stock
1192990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
1292995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1395380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
1492990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
153Y1-83550-01-00SPEEDOMETER CABLE (3Y1-83550-00$49.99$40.99Usually ships in 7-10 business days
1693210-14579-00

(replaces part #
93210-14104-00)

O-RING$7.99$6.238 In-Stock
17102-25137-00-00RING, STOP$8.49$6.624 In-Stock
