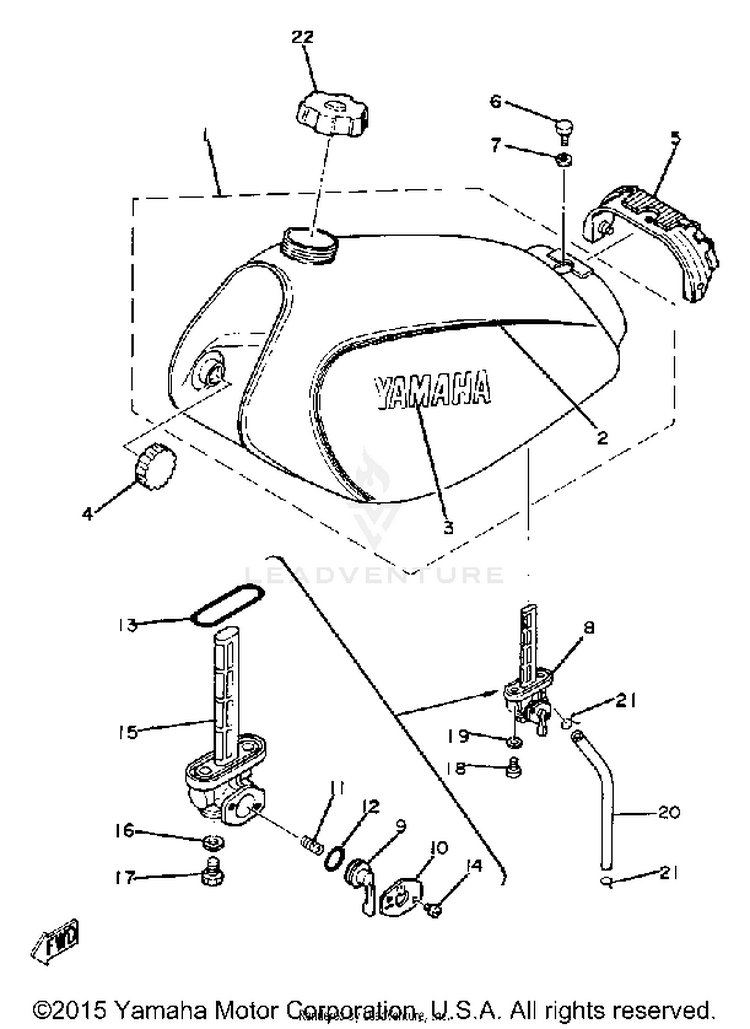

1981 Yamaha XT250 Fuel Tank OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
-	3Y1-24110-00-04	FUEL TANK \| U.R. CRYSTAL SILVER	$351.99	$274.55	Usually ships in 7-10 business days
1	3Y1-24110-00-08	FUEL TANK \| U.R. BRILLIANT RED	$351.99	$274.55	Usually ships in 7-10 business days
2	3Y1-24240-20-00	GRAPHIC SET	$57.99	$45.23	Usually ships in 7-10 business days
3	2J0-24161-20-00	EMBLEM 1	$19.99	$16.39	Not Shipping
4	3TB-24181-00-00 (replaces part # 278-24181-00-00)	DAMPER, LOCATING 1	$15.49	$12.08	10+ In-Stock
5	3Y1-24182-01-00	DAMPER, LOCATING 2	$13.49	$11.06	Usually ships in 7-10 business days
6	97017-06014-00 (replaces part # 97301-06014-00)	BOLT	$9.49	$7.40	10+ In-Stock
7	90201-06095-00 (replaces part # 90201-06063-00)	WASHER, PLATE	$9.49	$7.40	7 In-Stock
8	23F-24500-20-00 (replaces part # 15A-24500-03-00)	FUEL COCK ASSY 1	$45.99	$35.87	5 In-Stock
9	3Y1-24524-00-00	LEVER,COCK	$3.57	$3.21	Usually ships in 7-10 business days
10	3Y1-24525-00-00	PLATE, LVR FITTING	$1.18	$1.06	Usually ships in 7-10 business days
11	2W6-24529-00-00	SPRING	$5.99	$5.39	Not Shipping
12	2N3-24528-00-00	GASKET	$3.75	$3.22	2 In-Stock
13	2W6-24512-00-00	O-RING	$8.49	$6.62	2 In-Stock
14	98580-03008-00	SCREW, PAN HEAD	$3.85	$3.31	10+ In-Stock
15	3Y1-24514-00-00	NET, FILTER 1	$50.99	$39.77	Usually ships in 7-10 business days
16	2G2-24522-00-00	GASKET	$7.49	$6.74	Usually ships in 7-10 business days
17	2G2-24543-00-00	PLUG, DRAIN	$4.00	$3.60	Usually ships in 7-10 business days
18	90149-06011-00	SCREW	$2.05	$1.76	10+ In-Stock
19	90202-05187-00	WASHER, PLATE	$1.70	$1.46	10+ In-Stock
20	90445-10752-00 (replaces part # 90445-10638-00)	HOSE (L110)	$5.49	$4.28	10+ In-Stock
21	90467-090A2-00 (replaces part # 90467-09006-00)	CLIP	$4.75	$4.08	10+ In-Stock
22	3Y1-24610-02-00 (replaces part # 3Y1-24610-01-00)	CAP ASSY	$38.99	$31.97	Usually ships in 7-10 business days

-
