1981 Yamaha XT500 Cylinder OEM Parts Diagram

Submodel XT500H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER

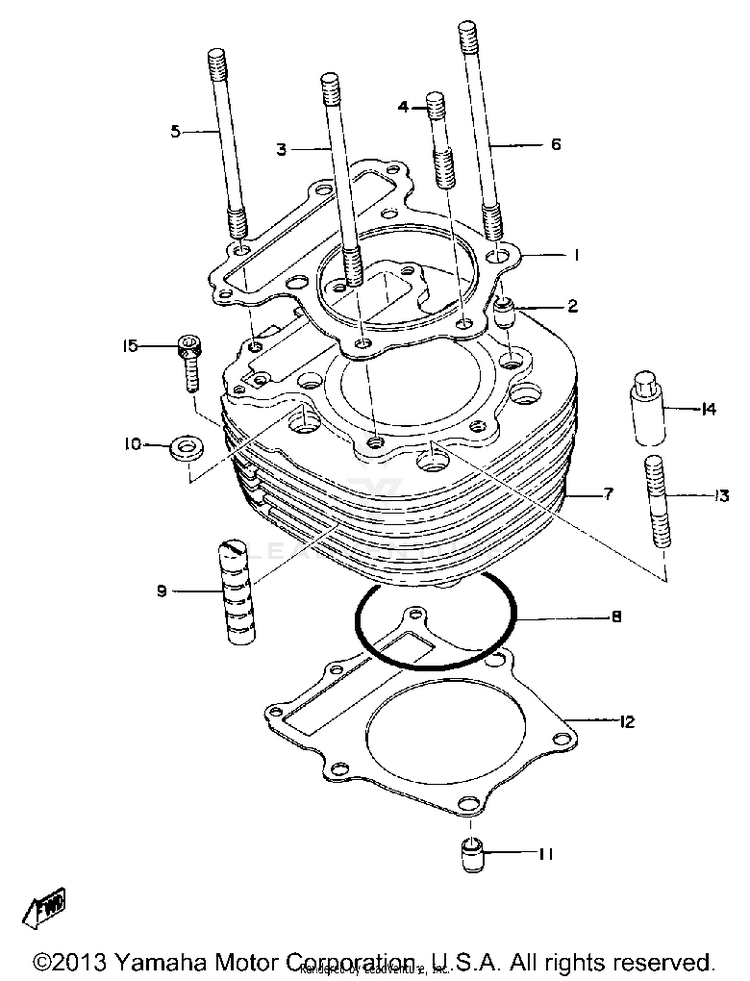

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12J2-11181-09-00GASKET, CYLINDER HEAD 1$124.99$97.49Usually ships in 7-10 business days
299530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
390116-10222-00BOLT, STUD$18.49$15.16Usually ships in 7-10 business days
490116-10223-00BOLT, STUD$11.49$9.42Usually ships in 7-10 business days
590116-08190-00BOLT, STUD$6.49$5.842 In-Stock
690116-10225-00BOLT, STUD$20.99$17.21Usually ships in 7-10 business days
7583-11310-00-00CYLINDER$605.99$472.67Usually ships in 7-10 business days
893210-92295-00O-RING$13.49$10.522 In-Stock
9583-11127-00-00ABSORBER 3$8.49$6.6210+ In-Stock
1090201-10590-00WASHER, PLATE$6.49$5.065 In-Stock
1199530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
123HT-11351-00-00

(replaces part #
583-11351-00-00)

GSKT, CYLN DR$32.99$27.05Usually ships in 7-10 business days
1390116-10087-00BOLT, STUD$19.49$15.981 In-Stock
1490179-10021-00

(replaces part #
90179-10201-00)

NUT$28.99$22.616 In-Stock
1590110-06138-00BOLT$6.49$5.0610+ In-Stock
