1981 Yamaha XT500 Electrical 2 OEM Parts Diagram

Submodel XT500H - 1981

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 2

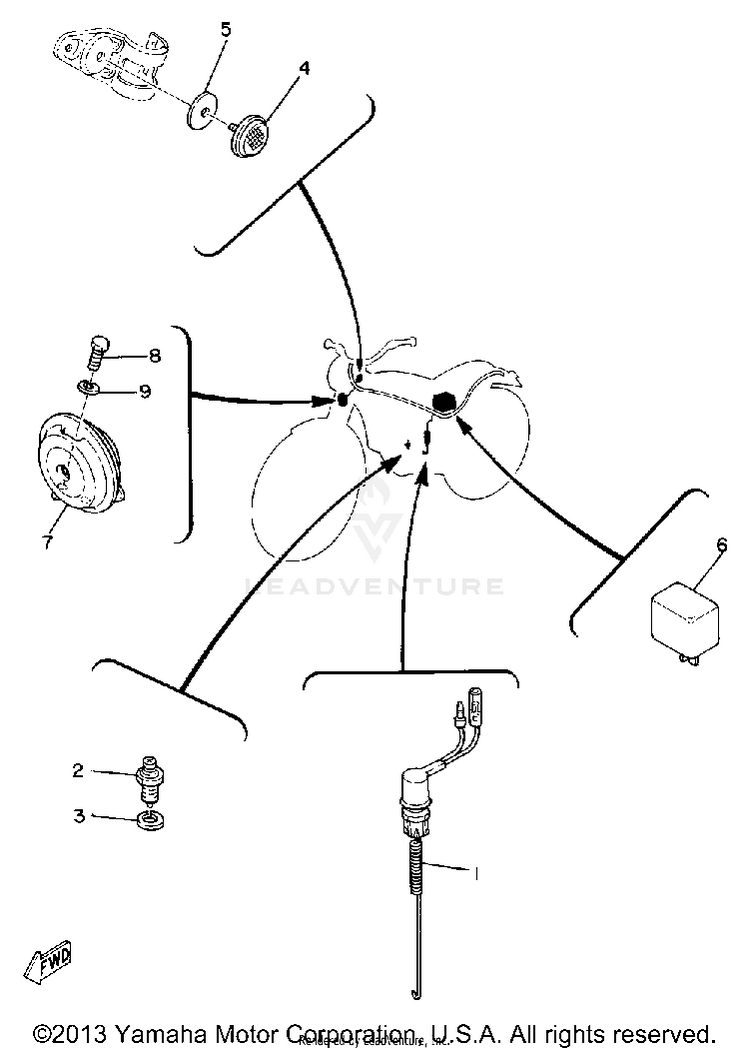

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11T2-82530-03-00

(replaces part #
1T2-82530-02-00)

STOP SWITCH ASSY$31.99$26.23Usually ships in 7-10 business days
24GY-82540-10-00

(replaces part #
2H7-82540-00-00)

NEUTRAL SWITCH ASSY$41.99$32.754 In-Stock
390430-10171-00BOLT, UNION$3.45$2.9710+ In-Stock
4355-85111-01-00REFLECTOR, FRONT 1$37.99$31.15Usually ships in 7-10 business days
590202-05191-00

(replaces part #
90430-06012-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
63BK-83350-00-00FLASHER RELAY ASSEMBLY$131.99$102.95Usually ships in 7-10 business days
73H7-83371-00-00HORN (25G-83371-00)$73.99$57.71Usually ships in 7-10 business days
897013-08012-00

(replaces part #
97313-08012-00)

BOLT (661)$3.55$3.0510+ In-Stock
992990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
