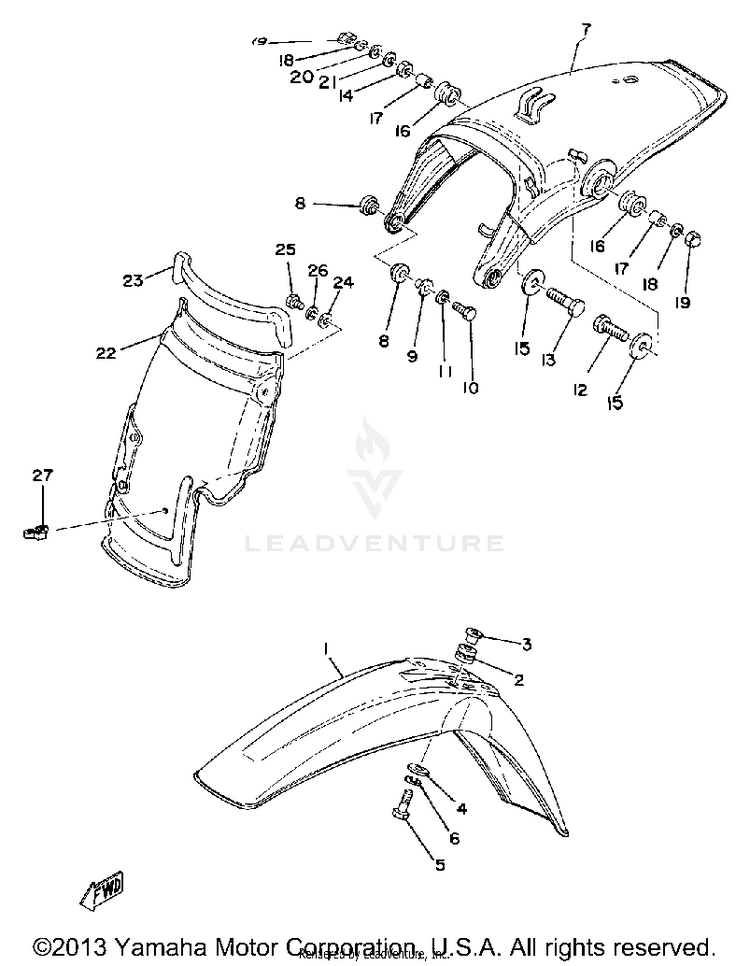

1981 Yamaha XT500 Front Fender Rear Fender OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	3H6-21511-00-00	FENDER, FRONT \| CLEAN WHITE	$86.99	$69.17	Usually ships in 7-10 business days
2	90480-14198-00	GROMMET	$10.49	$8.18	10+ In-Stock
3	90387-06158-00 (replaces part # 90387-06388-00)	COLLAR	$9.49	$7.40	10+ In-Stock
4	90201-06380-00 (replaces part # 90201-06067-00)	WASHER, PLATE	-	$0.71	10+ In-Stock
5	97017-06030-00 (replaces part # 97021-06030-00)	BOLT,HEXAGON	$3.90	$3.35	10+ In-Stock
6	92995-06100-00	WASHER, SPRING	$3.55	$3.05	10+ In-Stock
7	1U6-21610-00-36	FENDER, REAR \| CLEAN WHITE	$223.99	$197.63	Usually ships in 7-10 business days
8	322-21541-00-00	DAMPER 1	$8.49	$6.62	8 In-Stock
9	90387-07391-00	COLLAR	$10.49	$8.18	10+ In-Stock
10	97017-06025-00 (replaces part # 97011-06025-00)	BOLT	$4.55	$3.91	10+ In-Stock
11	92995-06100-00	WASHER, SPRING	$3.55	$3.05	10+ In-Stock
12	97013-08035-00 (replaces part # 97313-08035-00)	BOLT	$6.49	$5.06	10+ In-Stock
13	97013-08045-00 (replaces part # 97313-08045-00)	BOLT	$10.49	$8.60	4 In-Stock
14	95333-08600-00	NUT	$3.80	$3.47	10+ In-Stock
15	90201-08612-00	WASHER, PLATE	$9.49	$7.40	3 In-Stock
16	168-21639-00-00	DAMPER 2	$11.99	$9.35	4 In-Stock
17	90387-08258-00	COLLAR	$11.49	$8.96	6 In-Stock
18	92990-08100-00	WASHER, SPRING	$5.60	$4.37	10+ In-Stock
19	95303-08800-00	NUT (CROWN) (93501-08800-00)	$10.49	$8.18	4 In-Stock
20	92990-08200-00	WASHER, PLAIN	$3.05	$2.62	10+ In-Stock
21	90201-08326-00	WASHER, PLATE	$9.49	$7.40	10+ In-Stock
22	1T1-21620-00-00	GUARD, MUD	$78.99	$61.61	Usually ships in 7-10 business days
23	583-21746-00-00	DAMPER	$26.99	$22.13	Not Shipping
24	90201-06571-00	WASHER, PLATE	$10.49	$8.18	10+ In-Stock
25	97D95-06016-00 (replaces part # 97011-06016-00)	BOLT, HEXAGON DEEP R	$2.76	$2.37	10+ In-Stock
26	92995-06100-00	WASHER, SPRING	$3.55	$3.05	10+ In-Stock
27	90464-08020-00	CLAMP	$11.49	$9.42	Usually ships in 7-10 business days
