1982 Yamaha TT250 C - D - I - Magneto OEM Parts Diagram

Submodel TT250J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

C - D - I - MAGNETO

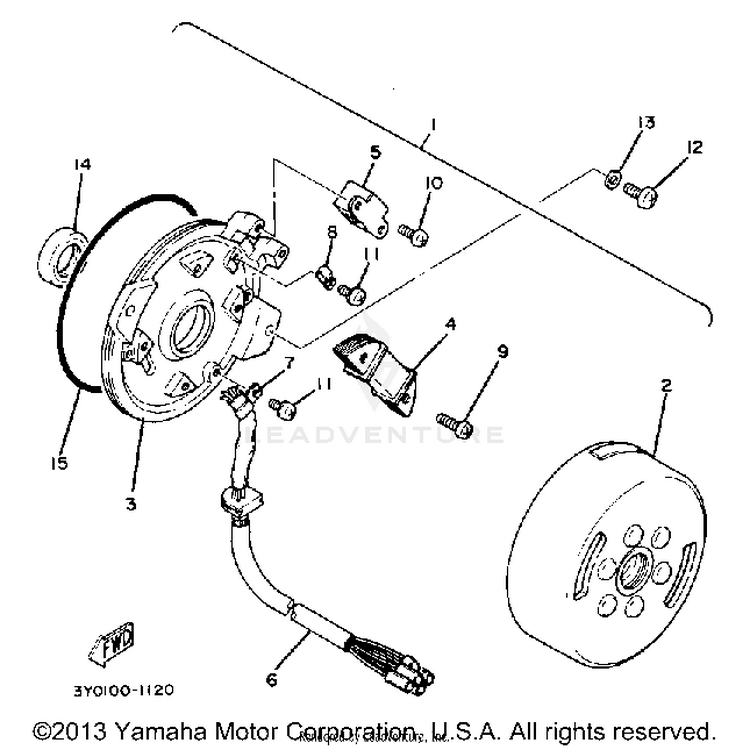

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13Y0-85500-90-00CDI MAGNETO ASSEMBLY$449.99$350.99Usually ships in 7-10 business days
23Y1-85509-20-00BASE, MAGNETO$105.99$82.67Usually ships in 7-10 business days
33Y1-85509-20-00BASE, MAGNETO$105.99$82.67Usually ships in 7-10 business days
431G-85512-20-00COIL SOURCE 2$163.99$127.91Usually ships in 7-10 business days
53Y1-85580-20-00COIL, PULSER$112.43$87.70Not Shipping
63Y0-85515-20-00LEAD WIRE ASSEMBLY$26.12$21.42Usually ships in 7-10 business days
7445-81328-20-00CLAMP$5.99$5.39Usually ships in 7-10 business days
83Y1-85528-20-00CLAMP, LEAD$2.58$2.32Usually ships in 7-10 business days
998580-05020-00SCREW, PAN HEAD$1.55$1.356 In-Stock
1098580-05012-00SCREW, PAN HEAD$7.99$6.2310+ In-Stock
1198517-04006-00

(replaces part #
97601-04106-00)

SCREW, PAN HEAD$4.60$3.9610+ In-Stock
1298580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
1392990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
1493102-25226-00OIL SEAL$16.49$12.8610+ In-Stock
1593211-19413-00O-RING$17.49$13.643 In-Stock
