1982 Yamaha TT250 Cylinder OEM Parts Diagram

Submodel TT250J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER

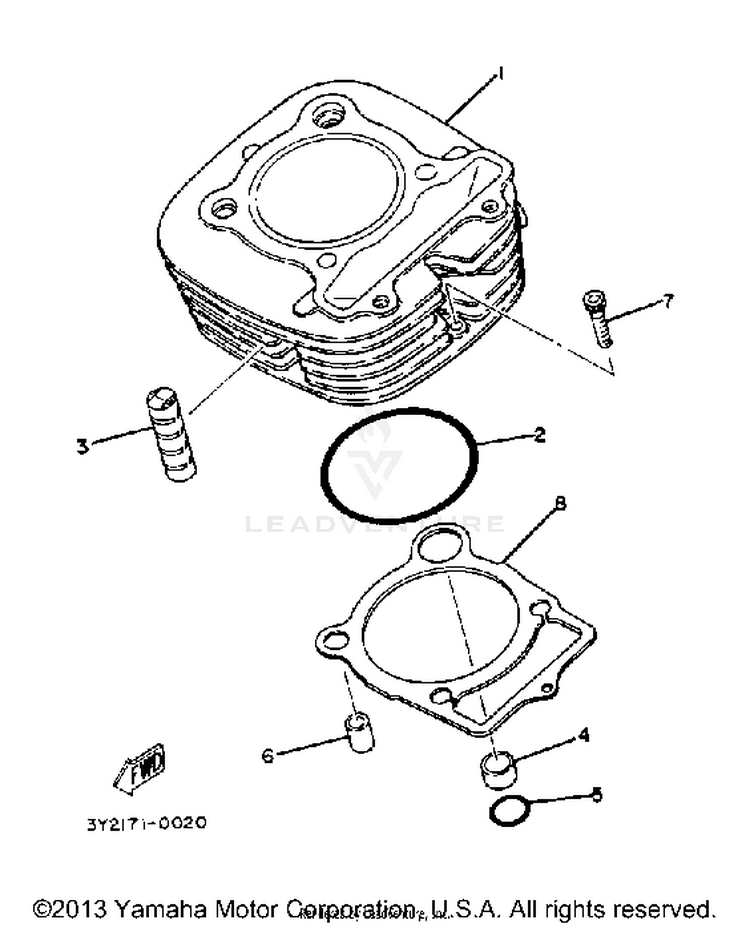

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13Y1-11310-00-00CYLINDER$517.99$404.03Usually ships in 7-10 business days
293210-81411-00O-RING$16.49$13.52Usually ships in 7-10 business days
3583-11127-00-00ABSORBER 3$8.49$6.6210+ In-Stock
490387-16547-00COLLAR$10.49$8.184 In-Stock
593210-18322-00O-RING$5.99$4.676 In-Stock
699530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
790110-06138-00BOLT$6.49$5.0610+ In-Stock
83NU-11351-01-00

(replaces part #
3Y1-11351-01-00)

GASKET, CYLINDER$27.99$22.95Usually ships in 7-10 business days
