1982 Yamaha TT250 Electrical 1 OEM Parts Diagram

Submodel TT250J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 1

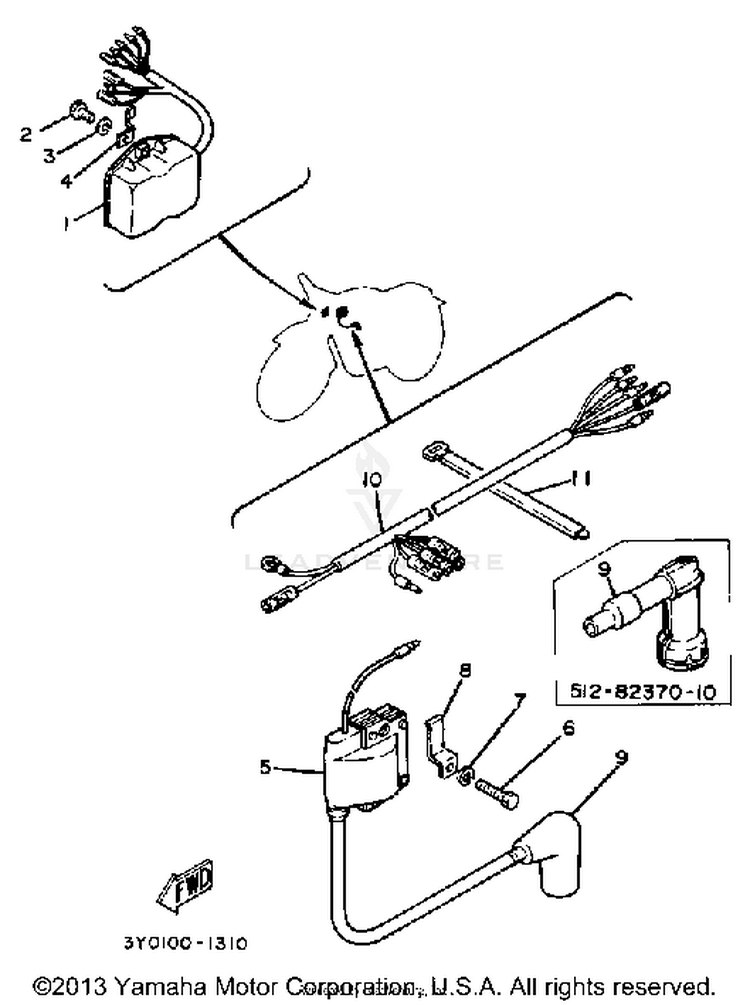

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-7KA-82370-00-00

(replaces part #
512-82370-10-00)

PLUG CAP ASY | U.R. WITH NOISE SUPPRESSER$73.99$57.71Usually ships in 7-10 business days
13Y1-85540-20-00CDI UNIT ASSEMBLY$403.99$315.11Usually ships in 7-10 business days
297D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
490462-08068-00CLAMP$1.49$1.34Usually ships in 7-10 business days
5355-82310-40-00

(replaces part #
5G4-82310-40-00)

IGNITION COIL ASSEMBLY$211.99$165.35Usually ships in 7-10 business days
697017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
792995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
890463-14016-00CLAMP$1.75$1.58Usually ships in 7-10 business days
956J-82370-00-00PLUG CAP ASSY | U.R.$70.99$55.372 In-Stock
103Y0-82521-01-00WIRE, LEAD$6.49$5.84Usually ships in 7-10 business days
11341-26397-01-00BAND$12.49$10.24Usually ships in 7-10 business days
