1982 Yamaha YZ250 Carburetor OEM Parts Diagram

Submodel YZ250J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CARBURETOR

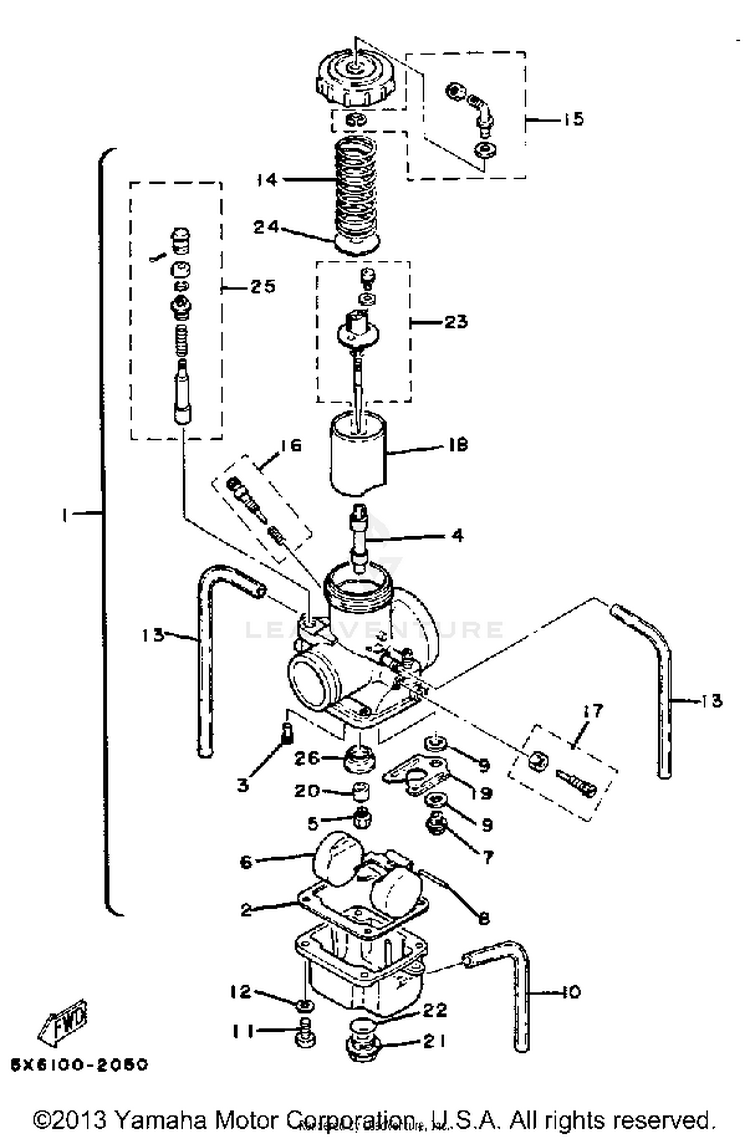

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-137-14143-74-00JET, MAIN (370) | U.R. STD$8.49$6.625 In-Stock
-137-14143-76-00JET, MAIN (380) | U.R.$8.49$6.623 In-Stock
15X5-14101-00-00CARBURETOR ASSEMBLY 1$351.99$274.55Usually ships in 7-10 business days
2363-14184-00-00GASKET, FLOAT CHAMBER$28.99$22.61
3193-14142-45-A1JET, PILOT (# 45)$6.99$5.45Not Shipping
4510-14141-50-00NOZZLE, MAIN (Q-0)$37.67$30.89Not Shipping
5137-14143-72-00JET, MAIN (360) | U.R.$7.49$5.844 In-Stock
62N7-14185-00-00FLOAT$92.99$72.533 In-Stock
723X-14107-35-00NEEDLE VALVE SET$49.99$38.996 In-Stock
8537-14186-00-00PIN, FLOAT$8.49$6.629 In-Stock
9239-14195-00-00WASHER, NEEDLE VALVE$14.49$11.303 In-Stock
1088R-14987-00-00

(replaces part #
3Y3-14196-00-00)

HOSE$8.99$7.01Not Shipping
1197885-05016-00

(replaces part #
98580-05016-00)

SCREW, PAN HEAD$4.70$4.049 In-Stock
1292990-05100-00WASHER, SPRING-$0.8310+ In-Stock
1389A-14987-00-00

(replaces part #
310-14197-00-00)

HOSE$17.99$14.036 In-Stock
14431-14131-00-00SPRING, THROTTLE VALVE$21.99$18.03Not Shipping
153R4-W1415-00-00ADJUSTER SET$18.22$14.94Not Shipping
1623X-14104-00-00AIR SCREW SET$10.99$8.572 In-Stock
172A0-W1411-00-00THROTTLE SCREW SET$17.99$14.75Not Shipping
182X8-14112-30-00VALVE, THROTTLE 1$135.99$106.07Not Shipping
193R4-14146-00-00PLATE$19.99$16.39Not Shipping
20509-14145-00-00SETTER, NEEDLE JET$17.99$14.75Not Shipping
21510-14115-00-00PLUG, SCREW$26.99$21.05Not Shipping
22558-14147-00-00O-RING$10.99$8.576 In-Stock
23239-W1418-01-00NEEDLE SET$23.26$19.07Not Shipping
24509-14136-00-00SEAT, SPRING$12.49$10.24Not Shipping
25737-W1414-00-00STARTER PLNGR SET$38.99$31.97Not Shipping
265X5-14153-00-00WASHER, MAIN JET$30.99$25.41Not Shipping
