1982 Yamaha YZ250 Frame - Tool OEM Parts Diagram

Submodel YZ250J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

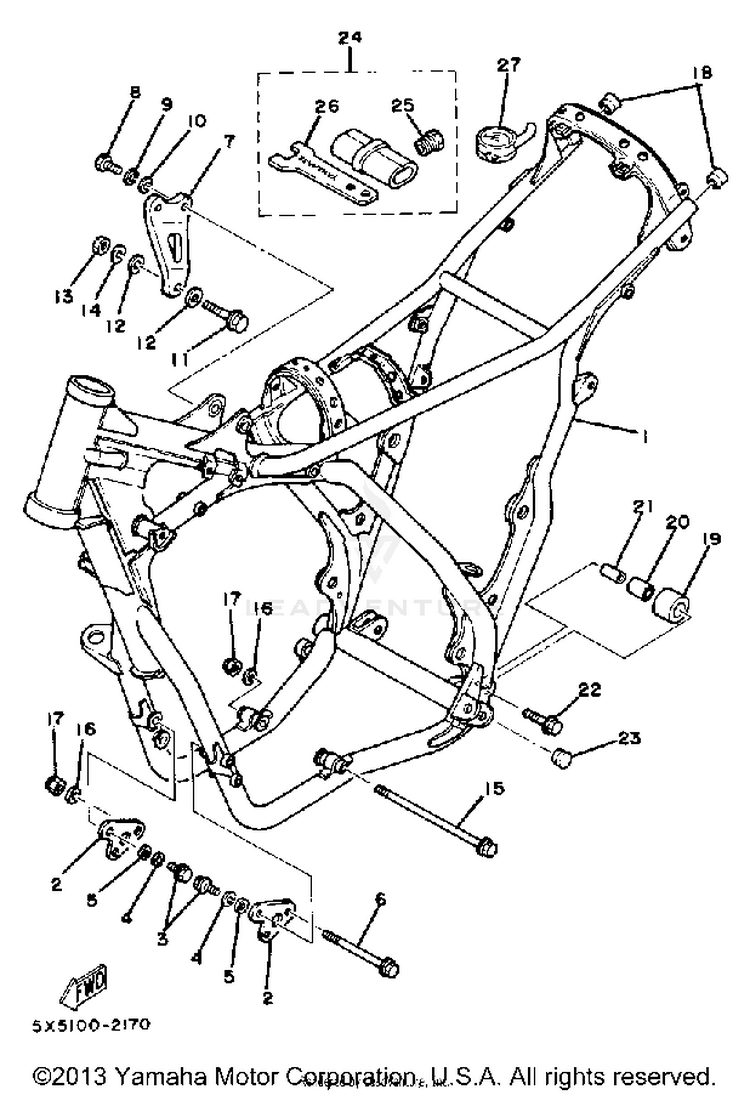

FRAME - TOOL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15X5-21110-00-33FRAME | YAMAHA BLACK$603.99$505.82Usually ships in 7-10 business days
25X5-21415-00-00BRACKET, FRT UPR 1$10.18$8.35Not Shipping
397013-08020-00

(replaces part #
97313-08020-00)

BOLT (661)$1.80$1.554 In-Stock
492990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
592990-08600-00

(replaces part #
92901-08600-00)

WASHER, PLATE$2.80$2.7610+ In-Stock
695817-08100-00

(replaces part #
95811-08100-00)

BOLT, FLANGE$6.49$5.062 In-Stock
75X5-21425-00-00BRACKET, REAR UPR 1$22.32$18.30Not Shipping
897013-08025-00BOLT, KICK CRANK$9.49$7.406 In-Stock
992990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
1092990-08200-00WASHER, PLAIN$3.05$2.6210+ In-Stock
1195817-10055-00

(replaces part #
95811-10055-00)

BOLT, FLANGE$6.49$5.069 In-Stock
1290201-100A1-00WASHER, PLATE$9.49$7.409 In-Stock
1395617-10100-00

(replaces part #
95601-10100-00)

NUT, U$9.49$7.405 In-Stock
1492990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
1595817-08180-00

(replaces part #
95811-08180-00)

BOLT, FLANGE$14.99$12.29Not Shipping
1692990-08200-00WASHER, PLAIN$3.05$2.6210+ In-Stock
1790185-08089-00NUT, SELF-LOCKING$10.49$8.1810+ In-Stock
1890339-13005-00PLUG$4.65$4.0010+ In-Stock
195X6-22178-00-00TENSIONER$33.99$26.516 In-Stock
204V4-22184-00-00BUSH$4.80$4.1310+ In-Stock
2190387-083F3-00COLLAR$2.97$2.67Not Shipping
2295817-08040-00

(replaces part #
95811-08040-00)

BOLT, FLANGE$7.49$5.841 In-Stock
2390338-12131-00PLUG$1.50$1.35Not Shipping
245X5-28100-00-00TOOL KIT$29.99$24.59Not Shipping
252K7-85555-00-00PULLER, ROTOR$24.99$19.491 In-Stock
2610V-28135-00-00SPANNER, SPECIAL$41.99$34.43Not Shipping
272X4-2811A-01-00GAUGE, AIR$83.99$65.51Not Shipping
